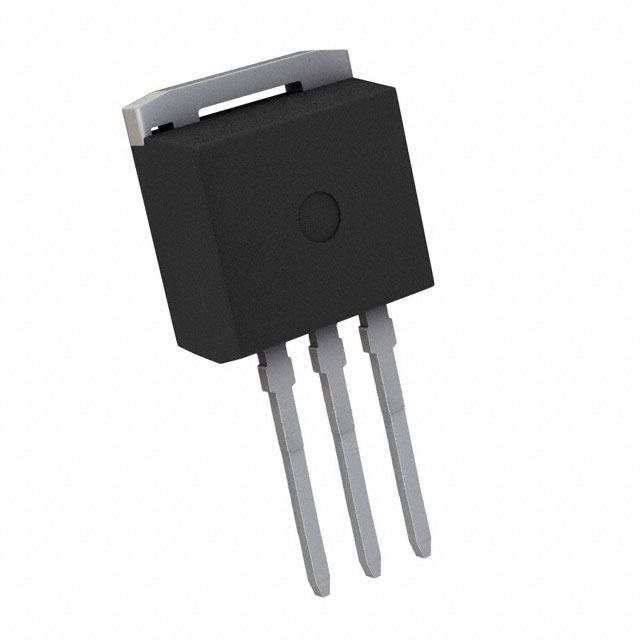

TFC563D
SCR 600V HID LAMP AUTO TO220SManufacturer: Sanken Electric USA Inc.
Categories: SCRs
Quality Control: Learn More
SCR 600 V Standard Recovery Through Hole TO-220S
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3, Short Tab |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 12 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.4 V |
| Current - Off State (Max) | 1 mA |
| Supplier Device Package | TO-220S |
| Voltage - Off State | 600 V |
