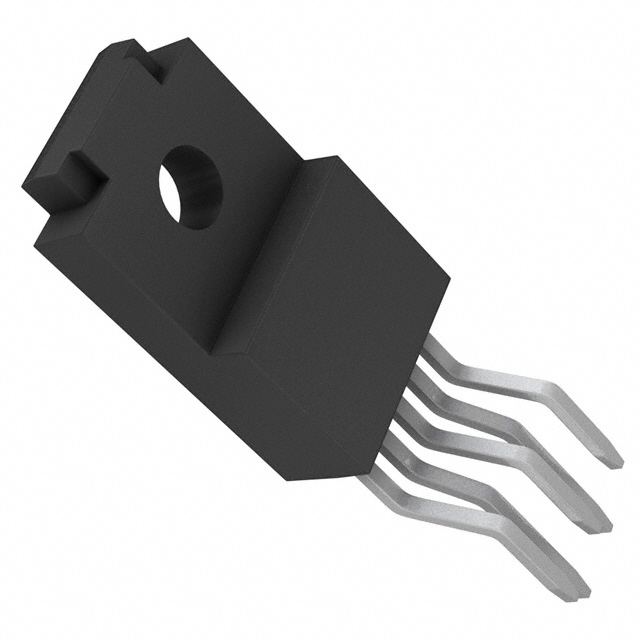

SI-3011ZF-TL
IC REG LINEAR POS ADJ 3A TO220-5Manufacturer: Sanken Electric USA Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-220-5
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-5 Full Pack, Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -20°C ~ 100°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 60dB (100Hz ~ 120Hz) |
| Voltage Dropout (Max) | 0.7V @ 3A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 1.5 mA |
