SSC4S790
IC GATE DRVR HIGH-SIDE 8SOICManufacturer: Sanken Electric USA Inc.
Categories: Gate Drivers
Quality Control: Learn More

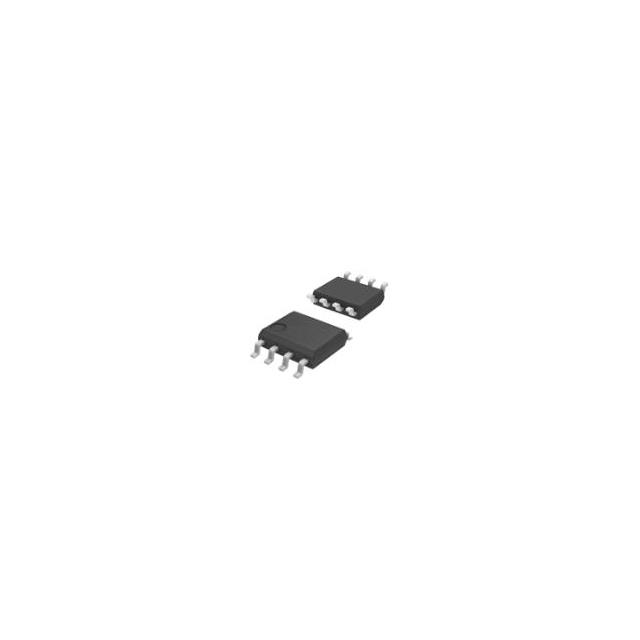

High-Side Gate Driver IC Inverting 8-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 12V ~ 18V |
| Input Type | Inverting |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | - |
| Channel Type | Single |
| Driven Configuration | High-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.4V, 2V |
| Current - Peak Output (Source, Sink) | 300mA, 550mA |
| Programmable | Not Verified |
Request a Quote
