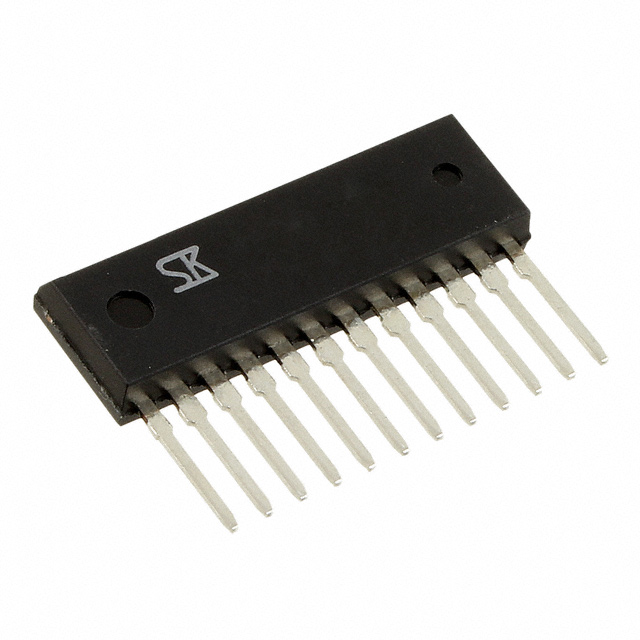

SMA5106
MOSFET 4N-CH 100V 4A 12SIPManufacturer: Sanken Electric USA Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 100V 4A (Ta) 4W (Ta), 28W (Tc) Through Hole 12-SIP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-SIP |
| Mounting Type | Through Hole |
| Configuration | 4 N-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 4W (Ta), 28W (Tc) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 230pF @ 25V |
| Rds On (Max) @ Id, Vgs | 550mOhm @ 2A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | 12-SIP |
| Grade | - |
| Qualification | - |
