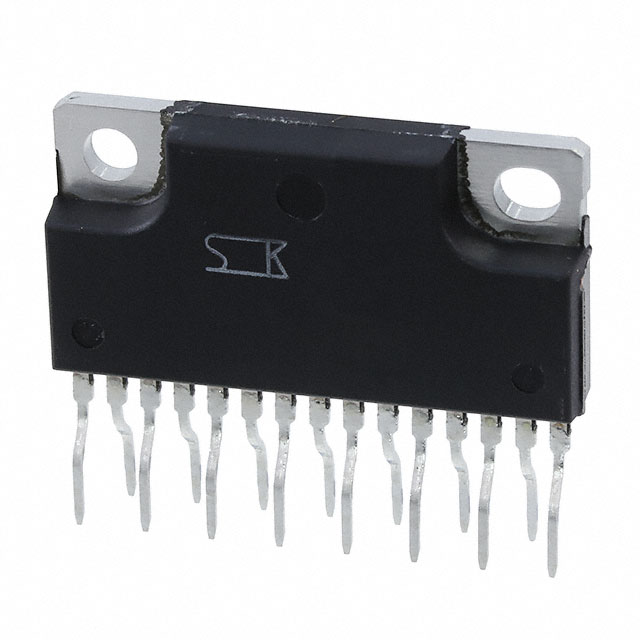

SLA5068 LF853
MOSFET 6N-CH 60V 7A 15SIPManufacturer: Sanken Electric USA Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 7A 5W Through Hole 15-SIP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 15-SIP |
| Mounting Type | Through Hole |
| Configuration | 6 N-Channel (3-Phase Bridge) |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 5W |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Input Capacitance (Ciss) (Max) @ Vds | 660pF @ 10V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 3.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | 15-SIP |
