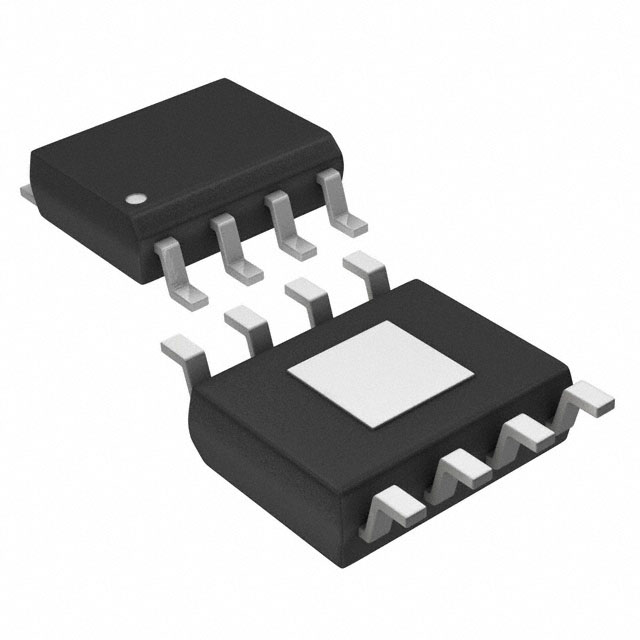

NR117K
IC REG BUCK ADJUSTABLE 2A 8HSOPManufacturer: Sanken Electric USA Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 8-SOIC (0.173"", 4.40mm Width) Exposed Pad
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 350kHz |
| Voltage - Input (Max) | 31V |
| Topology | Buck |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 24V |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 0.8V |
