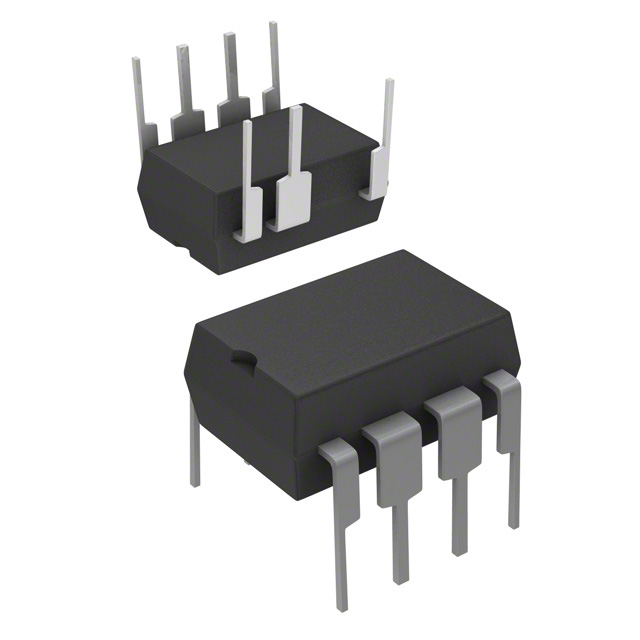

STR4A162D
IC OFFLINE SWITCH FLYBACK 8DIPManufacturer: Sanken Electric USA Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 65kHz 8-DIP
Additional Information
Series: STR4A100RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Duty Cycle | 74% |
| Frequency - Switching | 65kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 730V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.1V ~ 32V |
| Supplier Device Package | 8-DIP |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 15.2 V |
| Control Features | - |
| Power (Watts) | 7.5 W |
