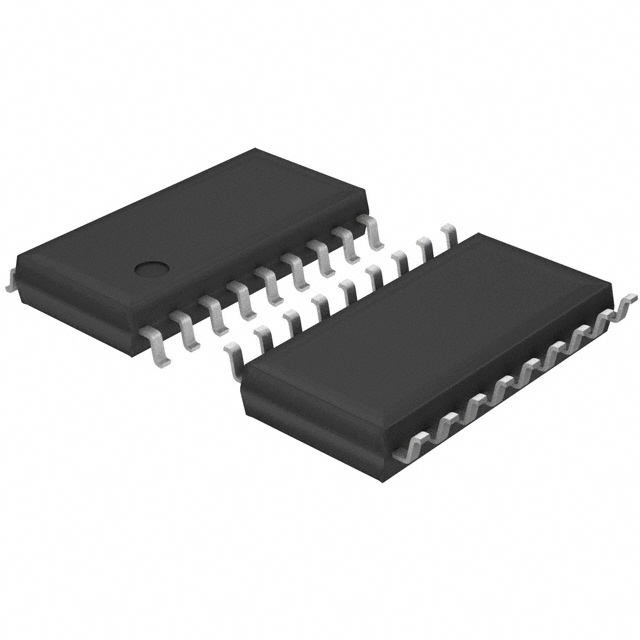

SSC9522S
IC OFFLINE SW HALF-BRDG 18SOPManufacturer: Sanken Electric USA Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Half-Bridge Topology 28.3kHz ~ 300kHz 18-SOP
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-SOIC (0.213"", 5.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 28.3kHz ~ 300kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Half-Bridge |
| Voltage - Supply (Vcc/Vdd) | 9.8V ~ 35V |
| Supplier Device Package | 18-SOP |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 11.8 V |
| Control Features | Soft Start |
