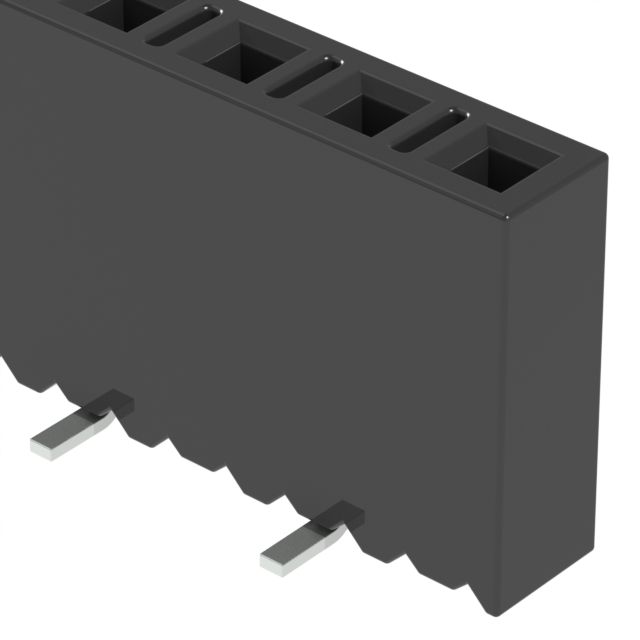

SSM-109-L-SV
CONN RCPT 9POS 0.1 GOLD SMDManufacturer: Samtec Inc.
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
9 Position Receptacle, Pass Through Connector 0.100"" (2.54mm) Surface Mount Gold
Additional Information
Series: Tiger Claw™ SSMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Pass Through |
| Voltage Rating | 405VAC, 572VDC |
| Current Rating (Amps) | 5.2A per Contact |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | - |
| Insulation Height | 0.290"" (7.37mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
