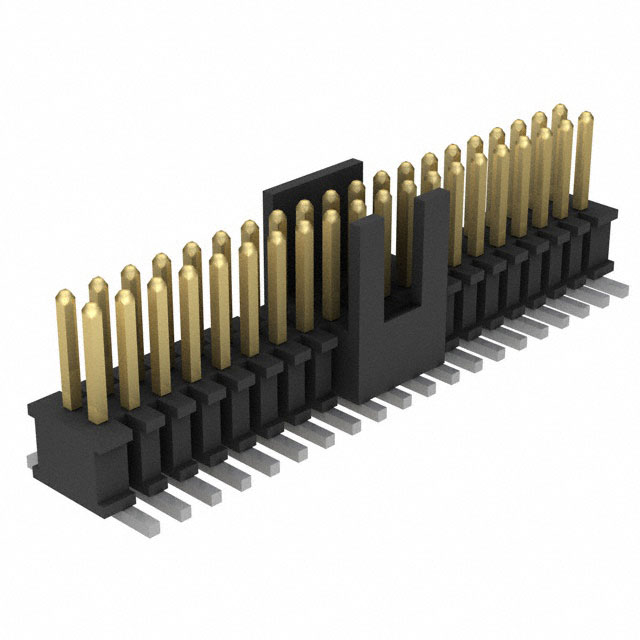

FTSH-120-01-L-DV-K
CONN HEADER SMD 40POS 1.27MMManufacturer: Samtec Inc.
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 40 position 0.050"" (1.27mm)
Additional Information
Series: FTSHRoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Shroud |
| Packaging | Bulk |
| Connector Type | Header, Cuttable |
| Voltage Rating | - |
| Current Rating (Amps) | 3.4A per Contact |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.099"" (2.51mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.050"" (1.27mm) |
| Contact Length - Mating | 0.120"" (3.05mm) |
