SPMWHT329FD5YBP0S0
LED LM302B COOL WHITE 6500K 3030Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LM302B Series LED, part number SPMWHT329FD5YBP0S0. This cool white LED features a correlated color temperature (CCT) of 6500K and a typical forward voltage of 5.9V at 150mA test current. Delivering 124 lumens at 150mA, this component offers a luminous efficacy of 140 lm/W. With a wide viewing angle of 115° and a CRI of 80, it is suitable for general illumination applications. The LED is housed in a compact 3030 metric package (1212) with dimensions of 3.00mm x 3.00mm and a maximum seated height of 0.75mm, designed for surface mounting. It is supplied on tape and reel for automated assembly processes.
Additional Information
Series: LM302BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 5.9V |
| Current - Test | 150mA |
| Viewing Angle | 115° |
| Current - Max | 250mA |
| Supplier Device Package | 3030 |
| Lumens/Watt @ Current - Test | 140 lm/W |
| Height - Seated (Max) | 0.030"" (0.75mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 124lm (115lm ~ 133lm) |
Request a Quote
Clients Also Buy

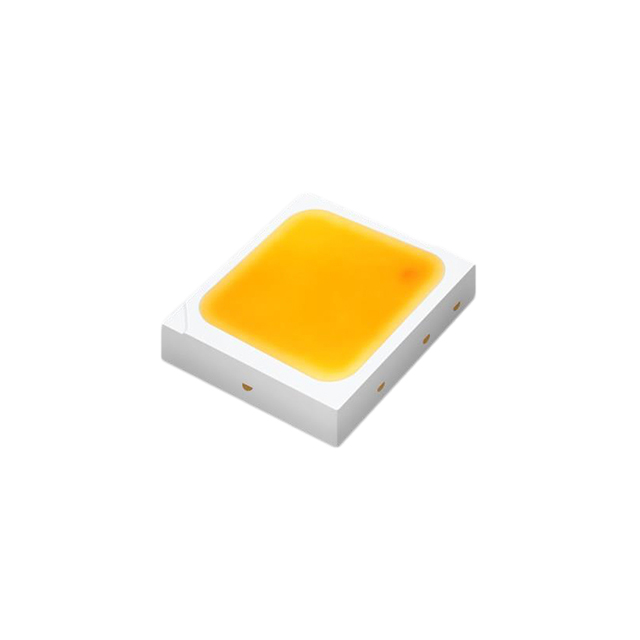

SPMWHT329FD5YBQ0S0
