SPMWHT327FD5GBQMS0

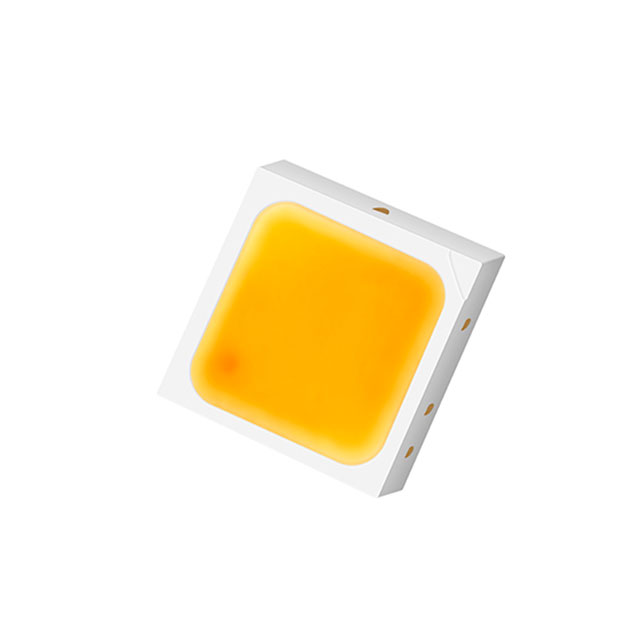

LED LM302A COOL WHITE 5700K 3030Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LM302A series cool white LED, part number SPMWHT327FD5GBQMS0. This 1212 (3030 Metric) package LED offers a correlated color temperature of 5700K with a typical forward voltage of 6.3V and a test current of 150mA. It provides a luminous flux of 123 lumens at 25°C with a luminous efficacy of 130 lm/W. The component features a wide 120° viewing angle and a Color Rendering Index of 80. Designed for surface mounting, its compact dimensions are 3.00mm x 3.00mm with a maximum seated height of 0.75mm. This component is suitable for general illumination and automotive lighting applications. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: LM302ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.3V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 3030 |
| Lumens/Watt @ Current - Test | 130 lm/W |
| Height - Seated (Max) | 0.030"" (0.75mm) |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 123lm (111lm ~ 135lm) |
| Flux @ 85°C, Current - Test | - |
