SPMWHT325AD5YBVKS2
LED LM362A WARM WHT 3000K 3623Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More

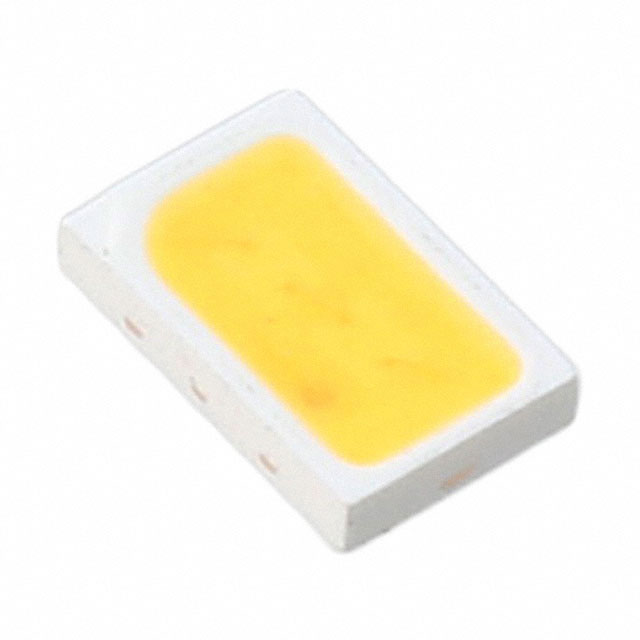

Samsung Semiconductor, Inc. LM362A series warm white LED, part number SPMWHT325AD5YBVKS2. This 3000K CCT LED offers a typical forward voltage of 6.1V and operates at a test current of 100mA, producing 66 lumens with a luminous efficacy of 108 lm/W. The maximum forward current is rated at 200mA. Featuring a wide 120° viewing angle and 80 CRI, this component is suited for general illumination and display backlighting applications. The compact 3623 package (2-SMD, No Lead) measures 3.60mm x 2.30mm with a maximum seated height of 0.70mm, facilitating surface mount integration. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: LM362ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | White, Warm |
| Size / Dimension | 0.142"" L x 0.091"" W (3.60mm x 2.30mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.1V |
| Current - Test | 100mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 3623 |
| Lumens/Watt @ Current - Test | 108 lm/W |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 66lm (51lm ~ 80lm) |
| Flux @ 85°C, Current - Test | - |
