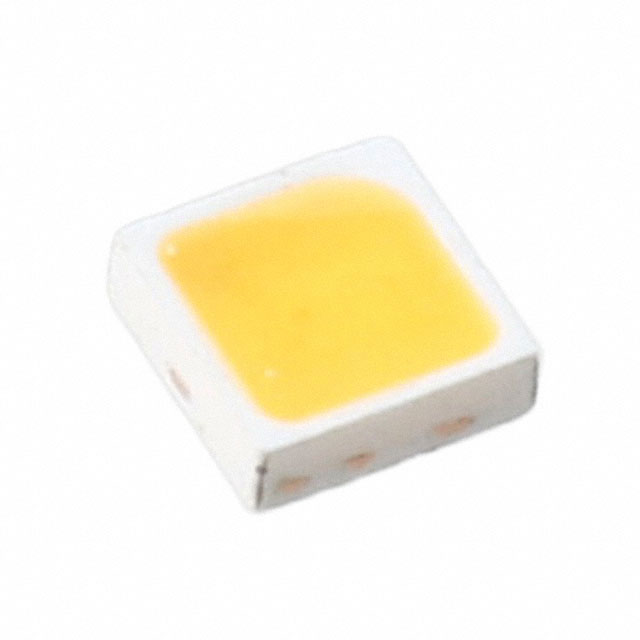

SPMWHT221MD5WAW0S0
LED LM231A WARM WHT 2700K 2323Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LM231A series LED, part number SPMWHT221MD5WAW0S0, offers a warm white illumination with a Correlated Color Temperature (CCT) of 2700K and a Color Rendering Index (CRI) of 80. This component is designed for surface mounting within a 0909 (2323 Metric) package, measuring 2.30mm x 2.30mm with a maximum seated height of 0.80mm. It operates at a typical forward voltage of 2.86V and a test current of 65mA, delivering 25 lumens of flux. The device features a broad 120° viewing angle and achieves 134 lm/W efficacy at the test current. Supplied in Tape & Reel (TR) packaging, this LED is suitable for general lighting applications and automotive interior lighting. The maximum forward current is rated at 150mA.
Additional Information
Series: LM231ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0909 (2323 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.091"" L x 0.091"" W (2.30mm x 2.30mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.86V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 150mA |
| Supplier Device Package | 2323 |
| Lumens/Watt @ Current - Test | 134 lm/W |
| Height - Seated (Max) | 0.031"" (0.80mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 25lm (20lm ~ 30lm) |
| Flux @ 85°C, Current - Test | - |
