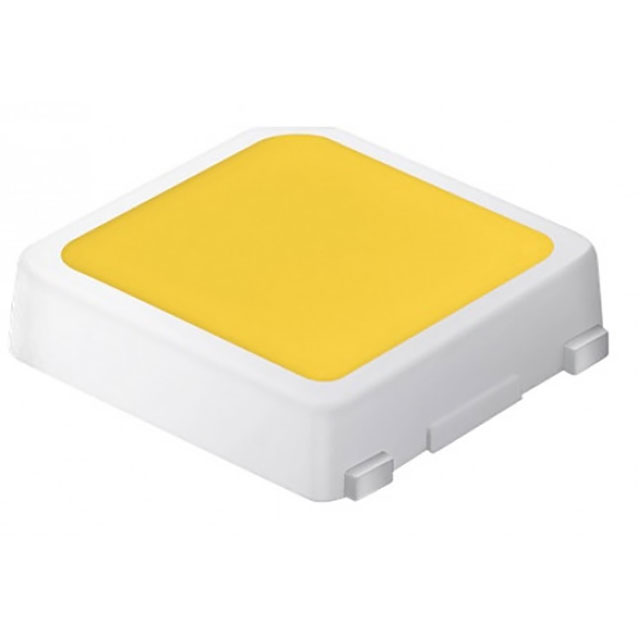

SPMWHD32AMH3XAR5S0
LED LM301H COOL WHITE 5000K 1212Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
LED Lighting LM301H White, Cool 5000K 5-Step MacAdam Ellipse 2.75V 65mA 120° 1212 (3030 Metric)
Additional Information
Series: LM301HRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1212 (3030 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.118"" L x 0.118"" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 1212 |
| Lumens/Watt @ Current - Test | 218 lm/W |
| Height - Seated (Max) | 0.033"" (0.85mm) |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 39lm (36lm ~ 42lm) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy
SPMWHD32AMH5XAT0SL
LED LM301H NEUT WHT 4000K 1212

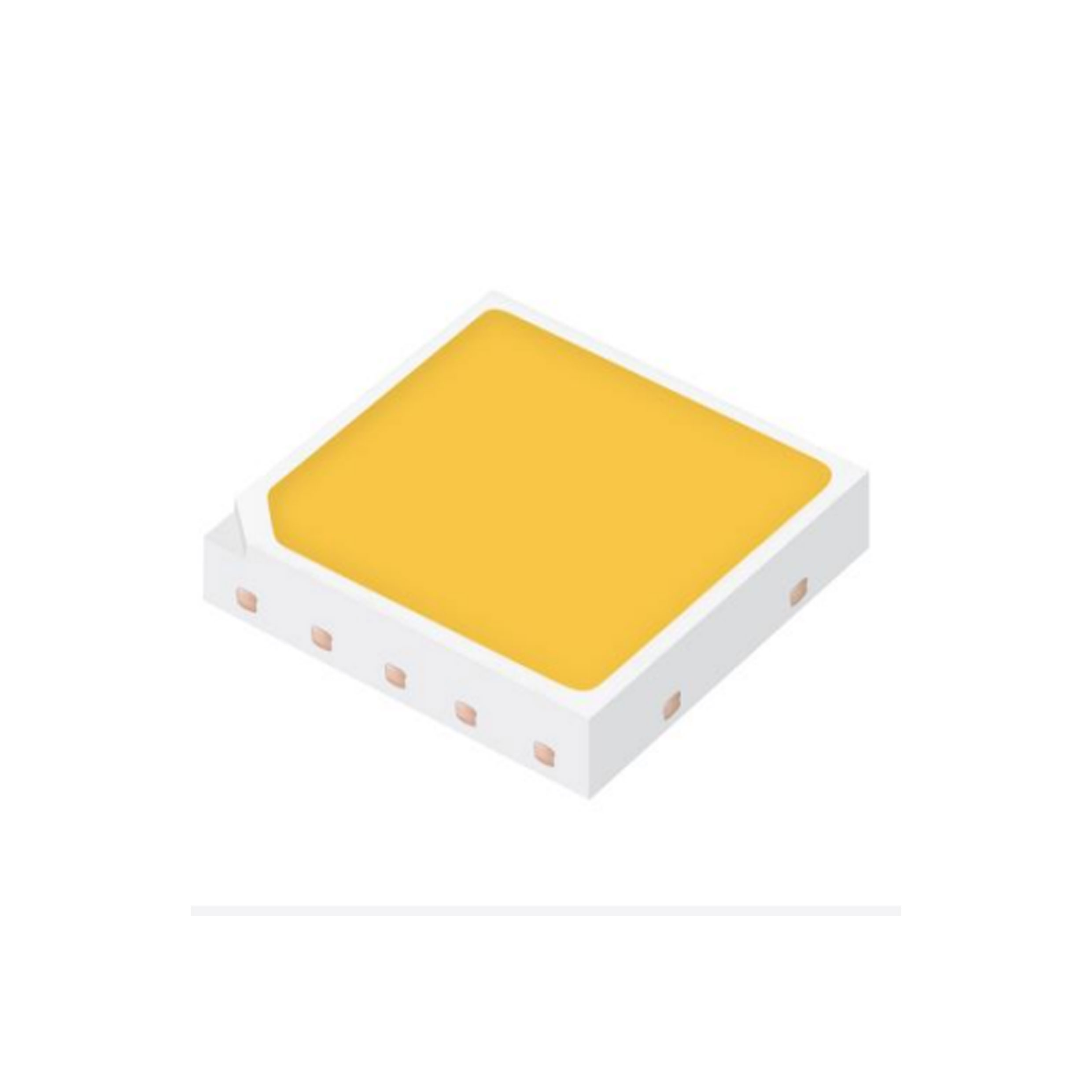

SPHWH2L5N603YEP5A3
