SPMWH1229AD5SGT0SA
LED LM283B NEUT WHT 4000K 2835Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More

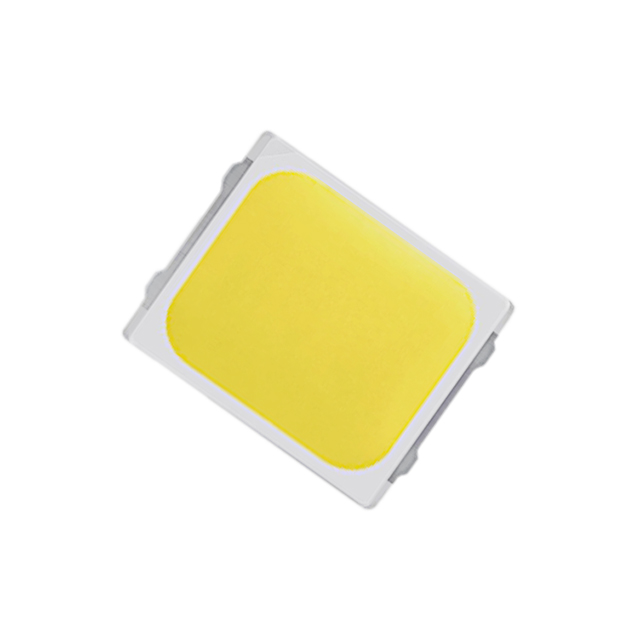

Samsung Semiconductor, Inc. LM283B series LED, part number SPMWH1229AD5SGT0SA, offers neutral white illumination at a 4000K CCT with a typical forward voltage of 9.4V at 100mA test current. This 2835 metric package component delivers 110 lumens flux at 100mA with a 120° viewing angle and a high luminous efficacy of 117 lm/W. Designed for surface mounting, it features a maximum seated height of 0.75mm and dimensions of 3.50mm x 2.80mm. The LED exhibits a Color Rendering Index (CRI) of 80 and is supplied on tape and reel. This component is utilized in various lighting applications, including general illumination and automotive lighting.
Additional Information
Series: LM283BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1113 (2835 Metric) |
| Color | White, Neutral |
| Size / Dimension | 0.138"" L x 0.110"" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 9.4V |
| Current - Test | 100mA |
| Viewing Angle | 120° |
| Current - Max | 110mA |
| Supplier Device Package | 2835 |
| Lumens/Watt @ Current - Test | 117 lm/W |
| Height - Seated (Max) | 0.030"" (0.75mm) |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 110lm (105lm ~ 115lm) |
| Flux @ 85°C, Current - Test | - |
