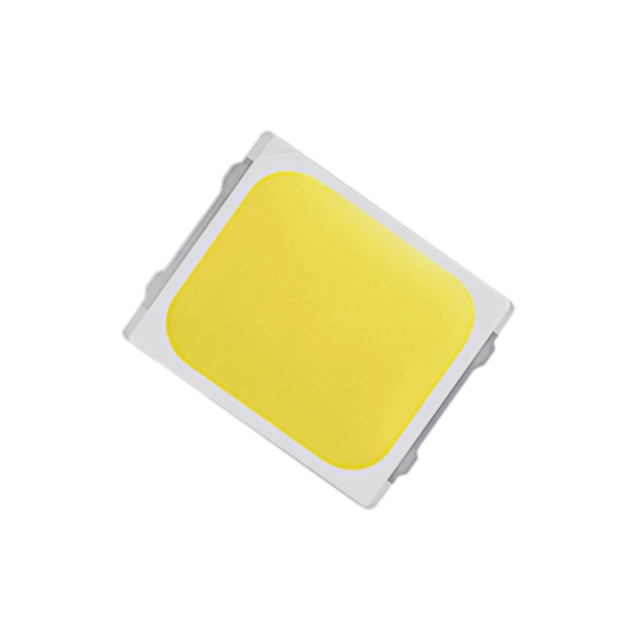

SPMWH1221FD5GBRMSA
LED LM282B COOL WHITE 5000K 2835Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LM282B Series Cool White LED, Part Number SPMWH1221FD5GBRMSA. This 2835 metric package component delivers 115 lumens at a test current of 150mA, operating at a typical forward voltage of 6.3V. Featuring a color temperature of 5000K and an 80 CRI, it offers a broad 120° viewing angle. The LED is designed for surface mount applications and is supplied on tape and reel. Its dimensions are 3.50mm x 2.80mm with a maximum seated height of 0.75mm. This component is suitable for general illumination and lighting applications where precise color rendering and efficient lumen output are critical.
Additional Information
Series: LM282BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1113 (2835 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.138"" L x 0.110"" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 6.3V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 160mA |
| Supplier Device Package | 2835 |
| Lumens/Watt @ Current - Test | 122 lm/W |
| Height - Seated (Max) | 0.030"" (0.75mm) |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 115lm (110lm ~ 120lm) |
| Flux @ 85°C, Current - Test | - |
