SPHWHTL3D303E6PTK3
LED LH351A COOL WHITE 6500K 3535Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More

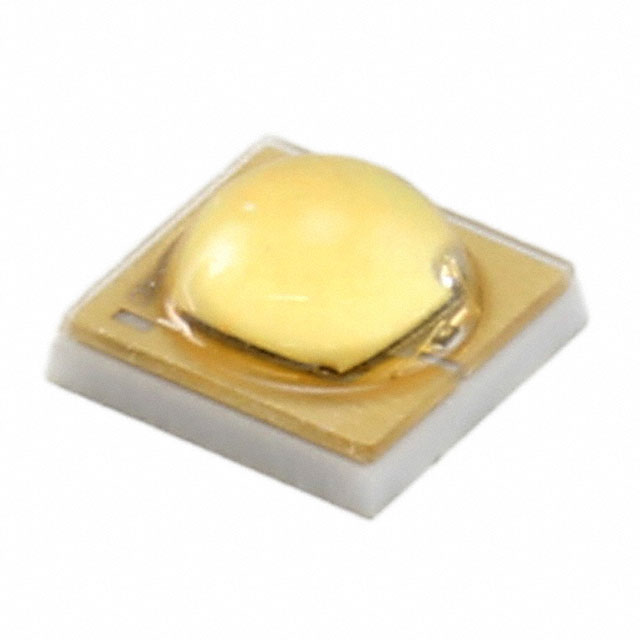

Samsung Semiconductor, Inc. LH351A Series LED, part number SPHWHTL3D303E6PTK3, offers a cool white light with a Correlated Color Temperature (CCT) of 6500K. This surface mount device, housed in a 3535 package (1414 metric), features a typical forward voltage of 2.95V and a test current of 350mA, delivering 145 lumens with a luminous efficacy of 140 lm/W at 25°C. The LED has a wide viewing angle of 125° and a maximum forward current of 1.5A. Its dimensions are 3.50mm x 3.50mm with a seated height not exceeding 2.02mm. This component is utilized in general lighting and automotive applications. It is supplied on a Tape & Reel (TR).
Additional Information
Series: LH351ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.138"" L x 0.138"" W (3.50mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Current - Max | 1.5A |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | 140 lm/W |
| Height - Seated (Max) | 0.080"" (2.02mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 145lm (130lm ~ 160lm) |
| Flux @ 85°C, Current - Test | - |
