SPHWHTL3D201F3PSJ3

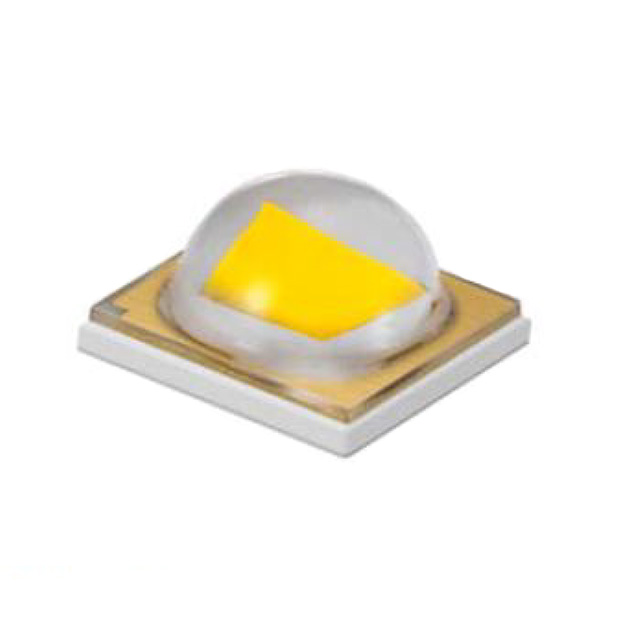

LED LH351Z COOL WHITE 6500K 3535Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LH351Z series LED, part number SPHWHTL3D201F3PSJ3. This cool white LED features a correlated color temperature (CCT) of 6500K and a typical forward voltage of 3V. Designed for surface mounting, it utilizes a 3535 metric package (1414 case) measuring 3.50mm x 3.50mm. The component offers a wide viewing angle of 120° and operates at a test current of 350mA, producing a luminous flux of 130 lumens at 25°C with a power efficiency of 124 lm/W. The maximum continuous forward current is 1A. This LED is suitable for general illumination and lighting applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: LH351ZRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.138"" L x 0.138"" W (3.50mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | 124 lm/W |
| Height - Seated (Max) | 0.081"" (2.06mm) |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 68 |
| Flux @ 25°C, Current - Test | 130lm (120lm ~ 140lm) |
| Flux @ 85°C, Current - Test | - |
