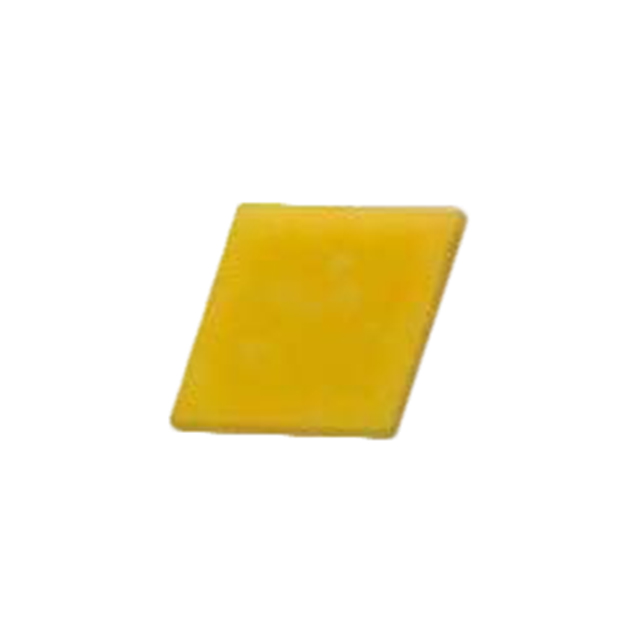

SCS7VT93HPL2VLS03F
LED LM102A WARM WHT 3000K SMDManufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LM102A Series LED, part number SCS7VT93HPL2VLS03F, offers warm white illumination with a correlated color temperature (CCT) of 3000K, precisely controlled within a 5-Step MacAdam Ellipse for consistent color. This surface-mount device, housed in an 0505 (1313 Metric) package measuring 1.34mm x 1.34mm, operates at a typical forward voltage of 5.9V and a test current of 150mA, delivering 111 lumens with a luminous efficacy of 125 lm/W at 85°C. The component features a wide 145° viewing angle and a CRI of 70, making it suitable for various lighting applications in automotive and general illumination sectors. The SCS7VT93HPL2VLS03F is supplied on tape and reel (TR) for automated assembly processes.
Additional Information
Series: LM102ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0505 (1313 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.053"" L x 0.053"" W (1.34mm x 1.34mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 5.9V |
| Current - Test | 150mA |
| Viewing Angle | 145° |
| Current - Max | 250mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 125 lm/W |
| Height - Seated (Max) | 0.017"" (0.42mm) |
| CCT (K) | 3000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 111lm (103lm ~ 119lm) |
Request a Quote
Clients Also Buy

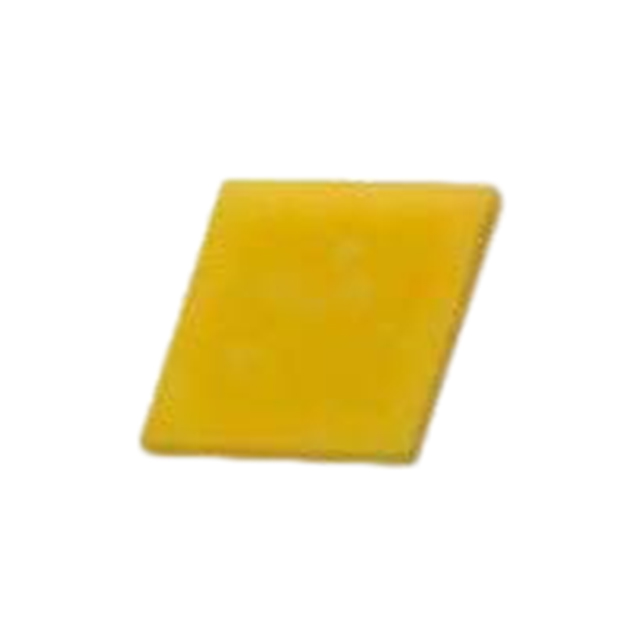

SCS7PT93HPL2PLS03F
