SCP9WTJ5HEL1WLGF6E
LED LH231B WARM WHT 2700K SMDManufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More

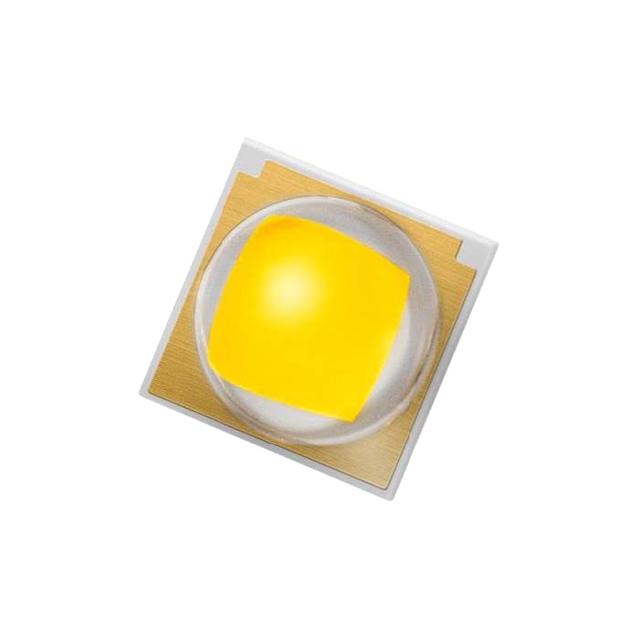

Samsung Semiconductor, Inc. LH231B series LED, part number SCP9WTJ5HEL1WLGF6E. This warm white LED features a correlated color temperature of 2700K, specified within a 5-step MacAdam ellipse for tight color consistency. Designed for surface mounting, it utilizes a 1111 (2828 Metric) SMD package measuring 2.80mm x 2.80mm with a maximum seated height of 0.48mm. The typical forward voltage is 2.9V, and it is rated for a test current of 700mA, delivering 200 lumens at 85°C with a lumens per watt rating of 99 lm/W. The viewing angle is 120 degrees. This component is commonly employed in general lighting and architectural lighting applications. It is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: LH231BRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1111 (2828 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.110"" L x 0.110"" W (2.80mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Current - Max | 2A |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 99 lm/W |
| Height - Seated (Max) | 0.019"" (0.48mm) |
| CCT (K) | 2700K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 200lm (170lm ~ 230lm) |
