SCP9VTF1HPL1V0G34E
LED LM101B WARM WHT 3000K 0606Manufacturer: Samsung Semiconductor, Inc.
Categories: LED White Lighting
Quality Control: Learn More

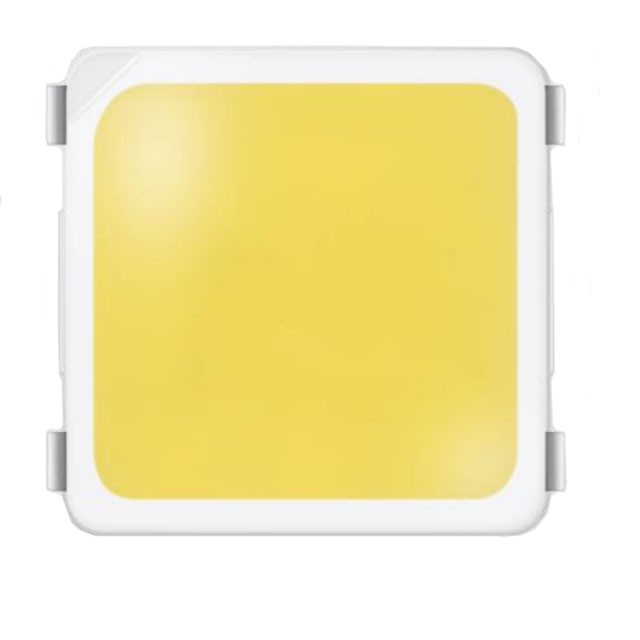

Samsung Semiconductor, Inc. LM101B series LED lighting component. This warm white LED offers a correlated color temperature (CCT) of 3000K with a high Color Rendering Index (CRI) of 90. Designed for surface mount applications, it features a compact 0606 (1616 Metric) package with dimensions of 1.70mm x 1.70mm and a maximum seated height of 0.44mm. With a typical forward voltage of 2.9V, this component operates at a test current of 350mA, delivering 115 lumens of flux and 113 lm/W efficacy. The maximum current rating is 1.5A. Its wide 140° viewing angle makes it suitable for general illumination, automotive, and architectural lighting applications. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: LM101BRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.067"" L x 0.067"" W (1.70mm x 1.70mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 1.5A |
| Supplier Device Package | 0606 |
| Lumens/Watt @ Current - Test | 113 lm/W |
| Height - Seated (Max) | 0.017"" (0.44mm) |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 115lm (100lm ~ 130lm) |
