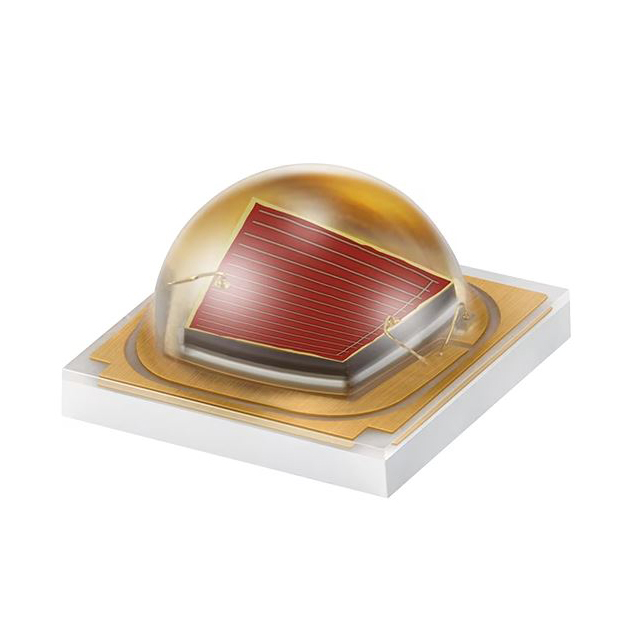

SPHRD2L3DH01A844B0
LED LH351H RED 730NM 3535Manufacturer: Samsung Semiconductor, Inc.
Categories: LED Color Lighting
Quality Control: Learn More
Samsung Semiconductor, Inc. LH351H series red LED, part number SPHRD2L3DH01A844B0. This 730nm (720nm-740nm) deep red LED is housed in a 3535 (1414 metric) surface-mount package measuring 3.50mm x 3.50mm. It features a typical forward voltage of 1.9V and a maximum continuous current rating of 1A, with a test current of 350mA. The component offers a wide 120° viewing angle and a seated height of 2.19mm. Supplied on tape and reel, this LED is suitable for applications in horticulture, medical lighting, and industrial signaling where precise deep red spectral output is required.
Additional Information
Series: LH351HRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | Red |
| Wavelength | 730nm (720nm ~ 740nm) |
| Size / Dimension | 0.138"" L x 0.138"" W (3.50mm x 3.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.086"" (2.19mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
