STIDMW840082112AAA
LED ENG RND-90B WHT RND 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

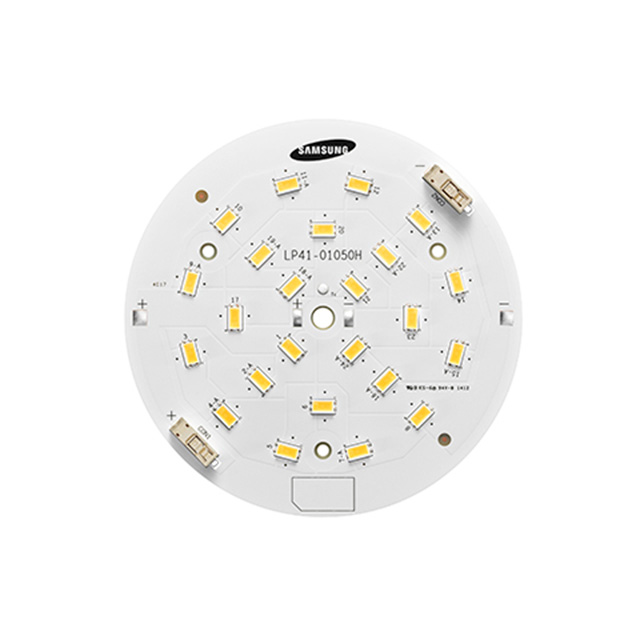

Samsung Semiconductor, Inc. STIDMW840082112AAA is a Round-90B series LED engine module. This neutral white LED engine provides 1030 lumens typical luminous flux at 24V forward voltage. Featuring a 90mm diameter and 5.70mm height, it offers a broad 115° viewing angle. The component is designed for applications requiring a 4000K correlated color temperature and an 80 CRI. This LED engine is suitable for general illumination, architectural lighting, and commercial display applications.
Additional Information
Series: Round-90BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 90.00mm Dia |
| Type | LED Engine |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.70mm |
| Current - Test | - |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | 1030lm (Typ) |
