SPHWHAHDNM231ZR3D4

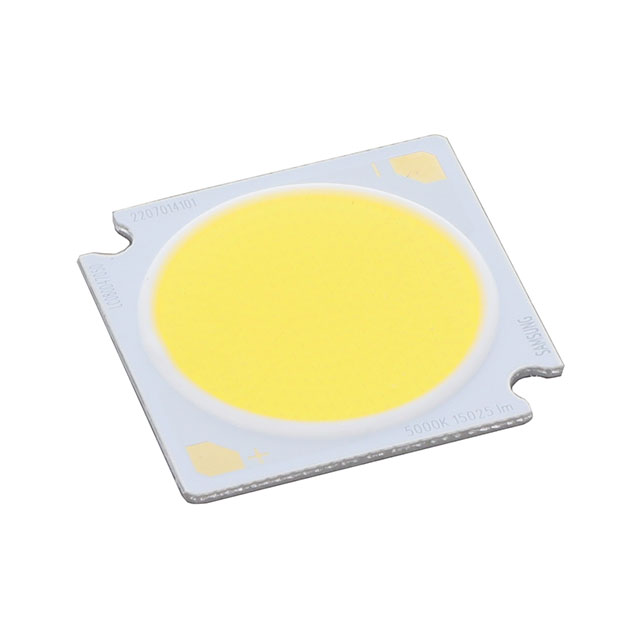

LED COB D GEN4 COOL WHT SQ 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) COB D Gen4 White, Cool Square
Additional Information
Series: COB D Gen4RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 50.5V |
| Height | 1.70mm |
| Current - Test | 1.62A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 4.14A |
| Lumens/Watt @ Current - Test | 188 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 15401lm (Typ) |
