SPHWHAHDNF27Y3WRT1

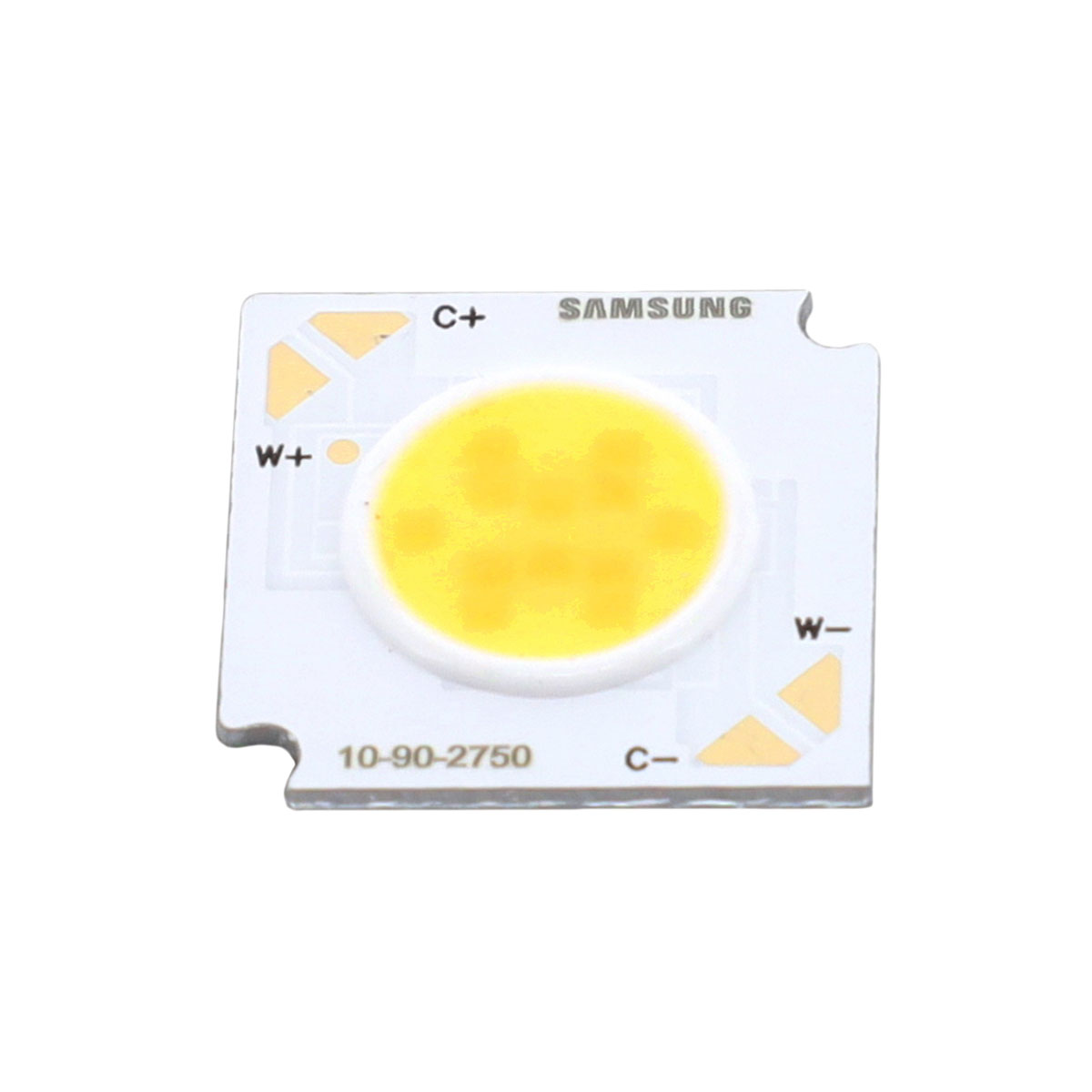

LED COB T-SERIES WHITE SQ 3850KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) COB T-Series White, Warm / White, Cool Square
Additional Information
Series: COB T-SeriesRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White, Warm / White, Cool |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 35.5V |
| Height | 1.60mm |
| Current - Test | - |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 800mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2116lm (1956lm ~ 2275lm) |
Request a Quote
