SL-B8V1N00L1WW
LED MOD INFLUXS01 LNR STR 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

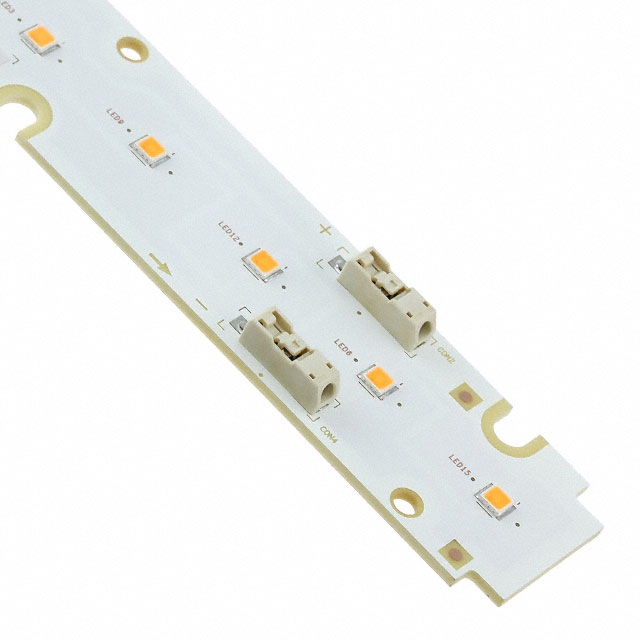

Samsung Semiconductor, Inc. presents the SL-B8V1N00L1WW from the inFlux_S01 series. This LED module, configured as a linear light strip, delivers 1310 lumens typical luminous flux at 9.1V forward voltage and 1.15A test current, achieving 125 lm/W efficiency at 65°C. It features a warm white color temperature of 3000K with a CRI of 80. The module measures 279.60mm in length and 23.70mm in width, with a height of 5.90mm, and includes an integrated connector for ease of use. Its flat lens and 115° viewing angle make it suitable for general illumination, architectural lighting, and signage applications where consistent light output and color rendering are critical. The component is supplied in trays.
Additional Information
Series: inFlux_S01RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 279.60mm L x 23.70mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 9.1V |
| Height | 5.90mm |
| Current - Test | 1.15A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.15A |
| Lumens/Watt @ Current - Test | 125 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 65°C |
| Luminous Flux @ Current/Temperature | 1310lm (Typ) |
