SL-B8T2N82SXWW
LED MOD K-SER LNR 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules LED Module K White, Neutral Linear Light Strip
Additional Information
Series: KRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 1206.00mm L x 20.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 45.1V |
| Height | 4.30mm |
| Current - Test | 500mA |
| Viewing Angle | 118° |
| Lens Type | Flat |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 180 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 4056lm (3650lm ~ 4461lm) |
Request a Quote
Clients Also Buy

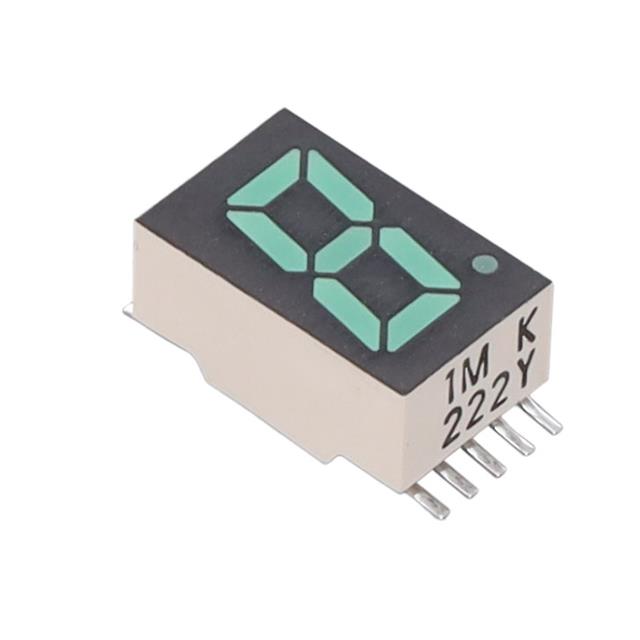

LF-3011MK
