SI-N8V1712B0WW
LED MOD RND-050D WHT RND 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. presents the SI-N8V1712B0WW, a Round-050D series LED module. This warm white LED module features a correlated color temperature (CCT) of 3000K and a Color Rendering Index (CRI) of 80, providing a typical luminous flux of 2070 lumens at 25°C. Operating at a maximum current of 700mA, it achieves an efficacy of 125 lumens per watt. The module has a forward voltage of 23.7V (typical) and a viewing angle of 115°. Its flat lens type and 50mm diameter, 3.70mm height configuration make it suitable for various lighting applications. This component is commonly utilized in general lighting, architectural lighting, and automotive lighting systems. The SI-N8V1712B0WW is supplied in trays.
Additional Information
Series: Round-050DRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 50.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 23.7V |
| Height | 3.70mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 125 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2070lm (Typ) |
Request a Quote
Clients Also Buy

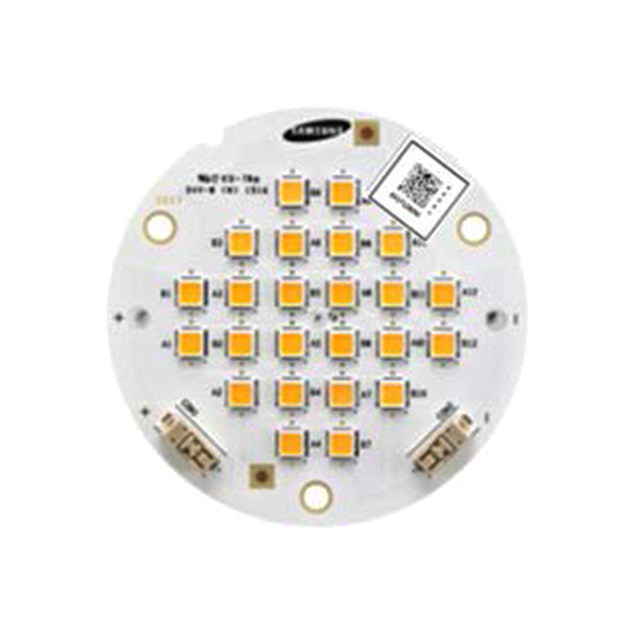

SI-N8T1712B0WW
