SI-N8V1312B0WW
LED COB SLE-013 WM WH RND 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

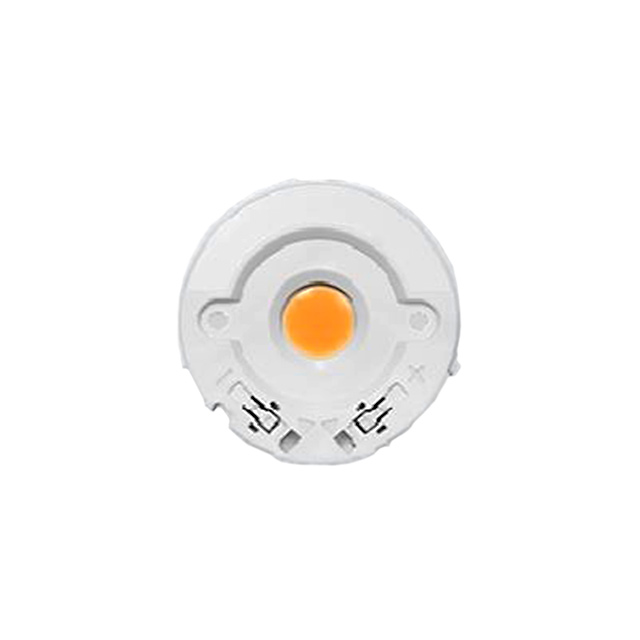

Samsung Semiconductor's SLE-013 series offers a high-performance Chip On Board (COB) LED module, part number SI-N8V1312B0WW. This warm white, round LED features a 3000K color temperature with a 3-step MacAdam ellipse for excellent color consistency. Engineered with a 13.50mm diameter Light Emitting Surface (LES) and a 50.00mm diameter footprint, this module delivers a typical luminous flux of 1120 lumens at 250mA test current, achieving 134 lm/W. The forward voltage is typically 33.5V, with a maximum current rating of 350mA. Its 80 CRI ensures good color rendering. This component is suitable for applications requiring efficient and consistent illumination, including general lighting and architectural lighting solutions. The module is supplied in a tray package and has a viewing angle of 115 degrees.
Additional Information
Series: SLE-013RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 50.00mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 33.5V |
| Height | 6.10mm |
| Current - Test | 250mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 350mA |
| Lumens/Watt @ Current - Test | 134 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 13.50mm Dia |
| Temperature - Test | 75°C |
| Luminous Flux @ Current/Temperature | 1120lm (Typ) |
