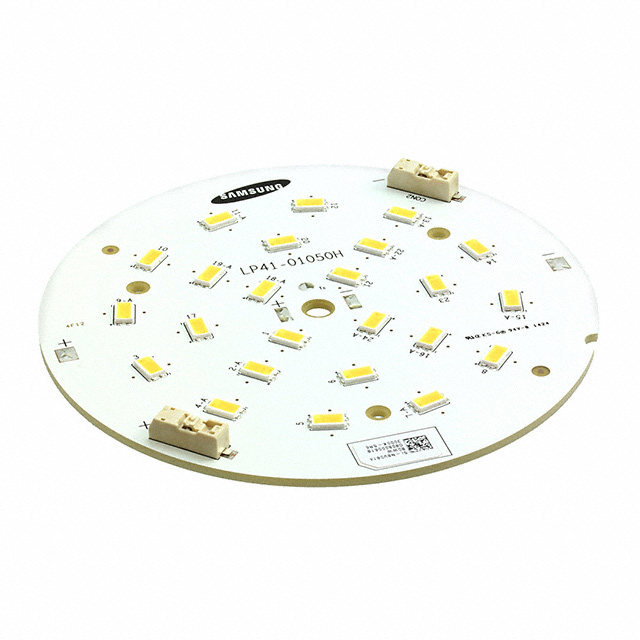

SI-N8V0814B0WW
LED MOD RND-090C WHT RND 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. presents the SI-N8V0814B0WW, a Round-090C series LED module. This warm white module features a 3000K color temperature with a 4-step MacAdam ellipse for consistent color. Designed for efficient illumination, it offers a typical luminous flux of 1050lm at 350mA test current, achieving 125 lm/W. The module operates with a forward voltage of 24V and a maximum current of 450mA. Its construction includes a connector for ease of integration and a flat lens type. With a 115° viewing angle and a CRI of 80, this component is suitable for general lighting, architectural lighting, and display applications. The module has a diameter of 90.00mm and a height of 5.75mm.
Additional Information
Series: Round-090CRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Box |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 90.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.75mm |
| Current - Test | 350mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 450mA |
| Lumens/Watt @ Current - Test | 125 lm/W |
| CCT (K) | 3000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 1050lm (Typ) |
Request a Quote
Clients Also Buy

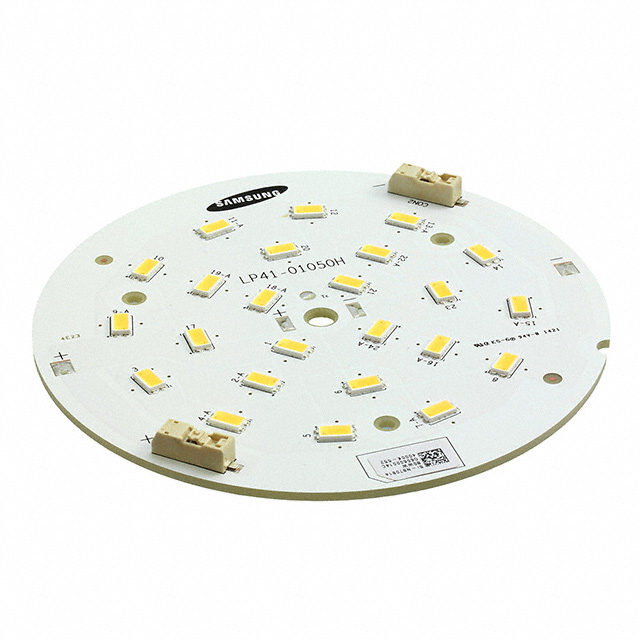

SI-N8T0814B0WW
LED MOD RND-090C WHT RND 4000K

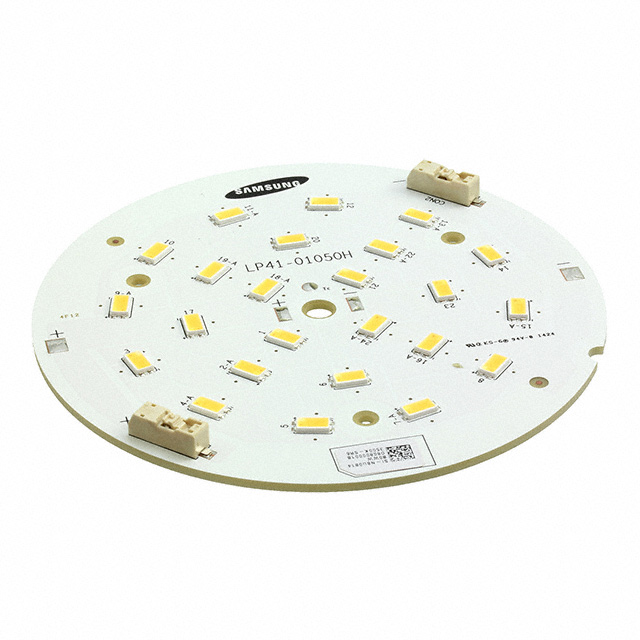

SI-N8U0814B0WW
