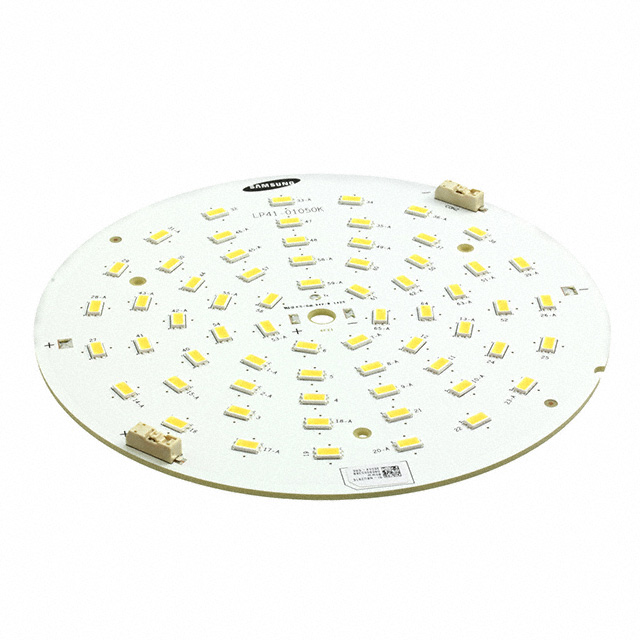

SI-N8U2816B0WW
LED MOD RND-130C WHT RND 3500KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. SI-N8U2816B0WW is a Round-130C series LED module delivering 3370 lumens typical luminous flux at 55°C test temperature. This white, warm LED module operates with a maximum forward current of 750mA and a typical forward voltage of 39.7V. It features an 80 CRI, a 3500K color temperature with a 4-Step MacAdam Ellipse, and a 115° viewing angle. The module has a diameter of 130mm and a height of 5.80mm, with a flat lens type and integrated connector. Rated for 121 lm/W at 700mA test current, this component is suitable for general lighting and architectural lighting applications. It is supplied in a box.
Additional Information
Series: Round-130CRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Box |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 130.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 39.7V |
| Height | 5.80mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 750mA |
| Lumens/Watt @ Current - Test | 121 lm/W |
| CCT (K) | 3500K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 3370lm (Typ) |
Request a Quote
Clients Also Buy

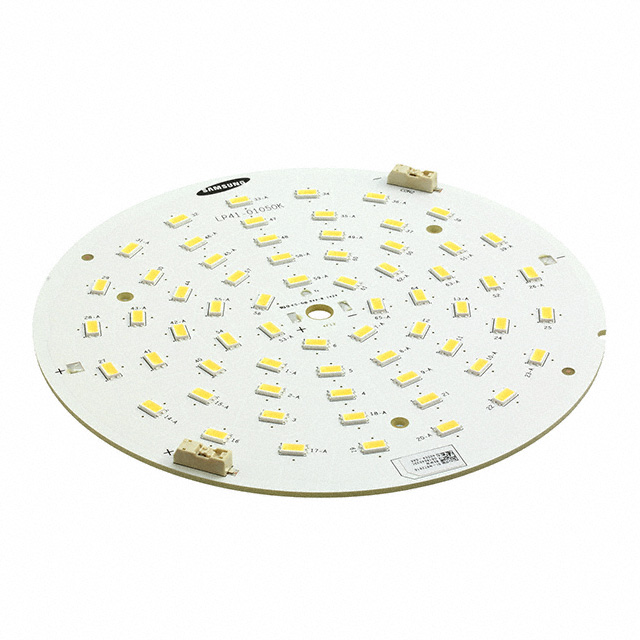

SI-N8T2816B0WW
LED MOD RND-130C WHT RND 4000K

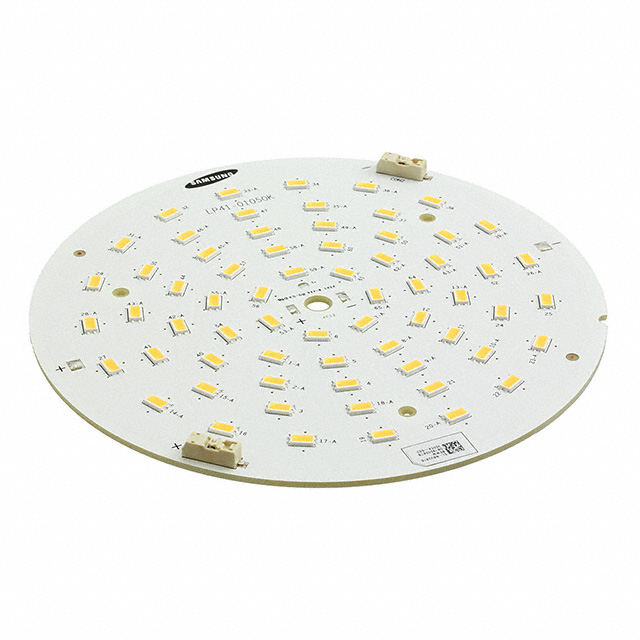

SI-N8V2816B0WW
