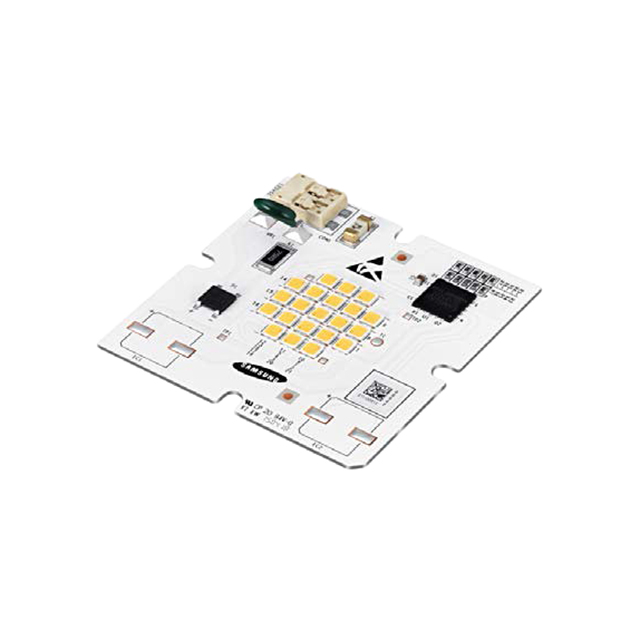

SI-N8T1123B1US
LED MOD ACOM DLE WHT SQU 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. presents the SI-N8T1123B1US, an ACOM DLE series LED Module. This neutral white, square configuration component provides 1200 lumens typical luminous flux and operates at a 4000K color temperature. With a 115° viewing angle and a CRI of 80, it delivers efficient illumination with 106 lm/W at 25°C. The module measures 55.00mm L x 55.00mm W with a height of 12.50mm, featuring a flat lens type. This component is suitable for general lighting and architectural illumination applications. It is supplied in tray packaging.
Additional Information
Series: ACOM DLERoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 55.00mm L x 55.00mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 120VAC |
| Height | 12.50mm |
| Current - Test | - |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 106 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1200lm (Typ) |
Request a Quote
