SI-N8T0812B0WW
LED MOD RND-040D WHT RND 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

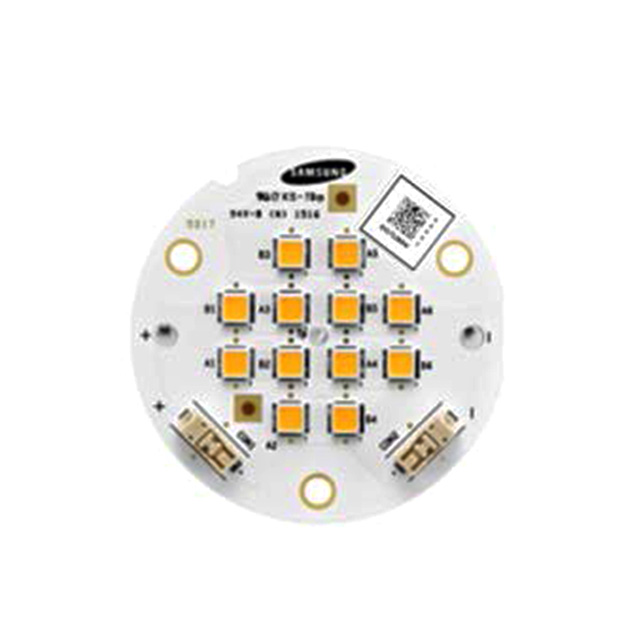

Samsung Semiconductor, Inc. presents the SI-N8T0812B0WW, a Round-040D series LED module. This neutral white module operates at a correlated color temperature (CCT) of 4000K with a typical CRI of 80. Featuring a round, flat lens configuration, it delivers 1000 lumens at a forward voltage of 23.7V (typical) and a test current of 350mA, achieving 129 lumens per watt. The module has a diameter of 41.00mm and a height of 3.70mm, with a wide viewing angle of 115°. This component is suitable for applications requiring efficient and reliable solid-state lighting, commonly found in general illumination and architectural lighting systems. The SI-N8T0812B0WW is supplied in trays.
Additional Information
Series: Round-040DRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 41.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 23.7V |
| Height | 3.70mm |
| Current - Test | 350mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 350mA |
| Lumens/Watt @ Current - Test | 129 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 1000lm (Typ) |
