SI-B9W111560WW
LED MOD LT-M562F LNR STRP 2700KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

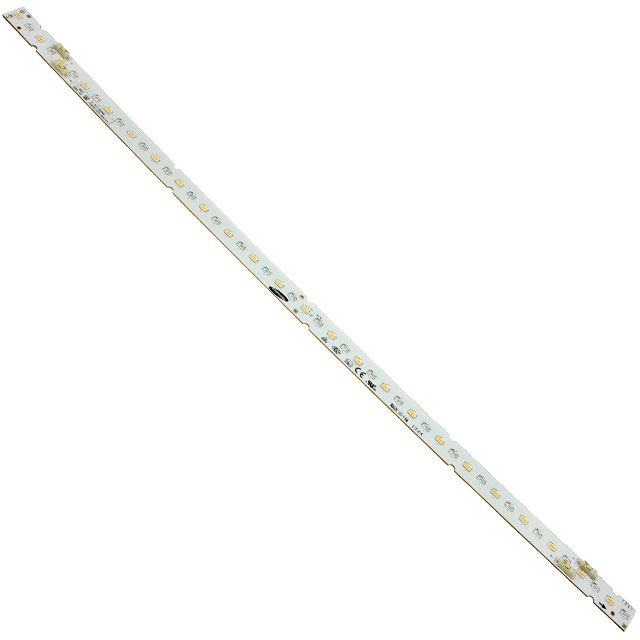

Samsung Semiconductor, Inc. LT-M562F series LED module, part number SI-B9W111560WW, offers a warm white linear light strip configuration. This module features a 2700K correlated color temperature (CCT) with a 3-step MacAdam ellipse for precise color uniformity. It boasts a high color rendering index (CRI) of 90, ensuring accurate color representation. Designed for operation at a maximum current of 450mA, the module delivers a typical luminous flux of 1020 lumens at this current and a test condition of 50°C. The efficiency is rated at 92 lumens per watt at the test current. The module has a forward voltage of 24.7V (typical) and a viewing angle of 115°. Its dimensions are 560.00mm in length and 18.00mm in width, with a height of 5.80mm. This component is suitable for general lighting applications and architectural lighting. It is supplied in trays.
Additional Information
Series: LT-M562FRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.7V |
| Height | 5.80mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 450mA |
| Lumens/Watt @ Current - Test | 92 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1020lm (Typ) |
