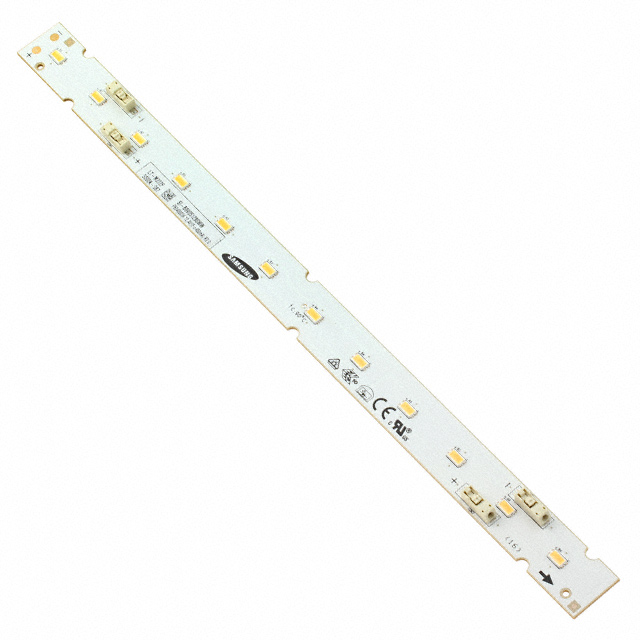

SI-B9W051280WW
LED MOD LT-M272F LNR STRP 2700KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The Samsung Semiconductor, Inc. LT-M272F is a linear LED module designed for high-quality illumination. This module features a warm white color temperature of 2700K, specified with a 3-Step MacAdam Ellipse for excellent color consistency. With a high Color Rendering Index (CRI) of 90, it accurately reproduces colors, making it suitable for demanding lighting applications. The module operates at a typical forward voltage of 12V and a maximum test current of 450mA, delivering a typical luminous flux of 510 lumens. Its efficiency is rated at 94 lumens per watt at the test current. The compact linear strip configuration measures 275.00mm in length and 18.00mm in width, with a height of 5.80mm. This component finds application in general lighting, architectural lighting, and display backlighting industries. The SI-B9W051280WW is supplied in tray packaging.
Additional Information
Series: LT-M272FRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 12V |
| Height | 5.80mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 450mA |
| Lumens/Watt @ Current - Test | 94 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 510lm (Typ) |
Request a Quote
Clients Also Buy

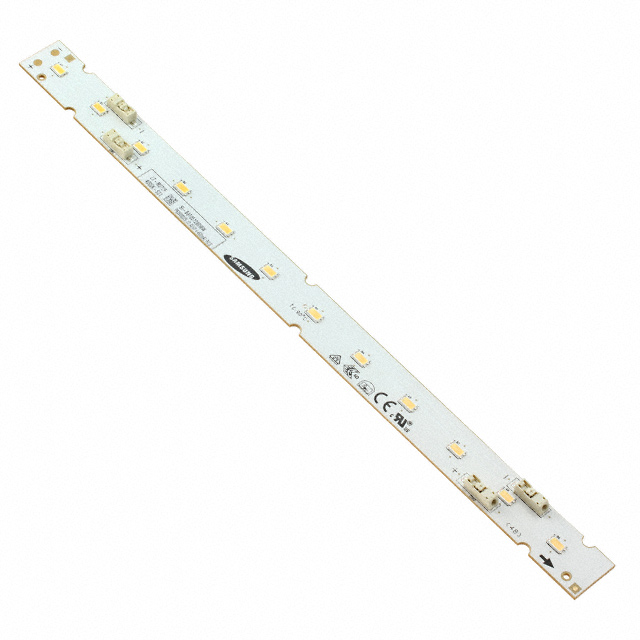

SI-B9T051280WW
LED MOD LT-M272F LNR STRP 4000K

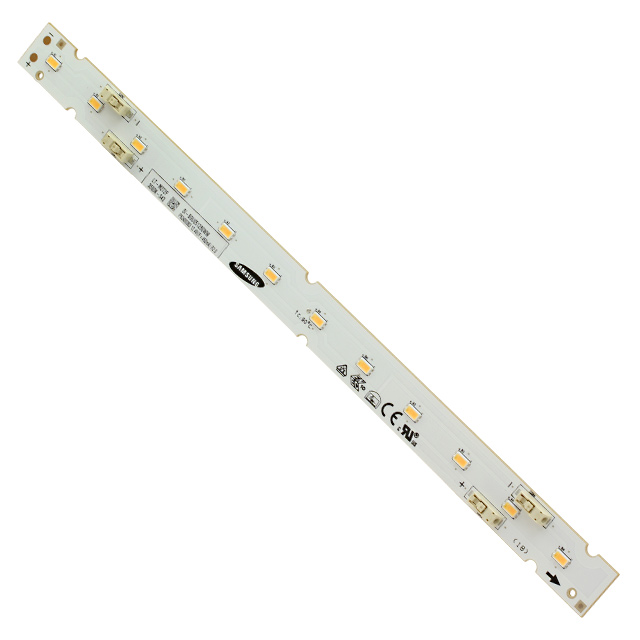

SI-B9U051280WW
