SI-B9V113280WW
LED MOD LT-M272H LNR STRP 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

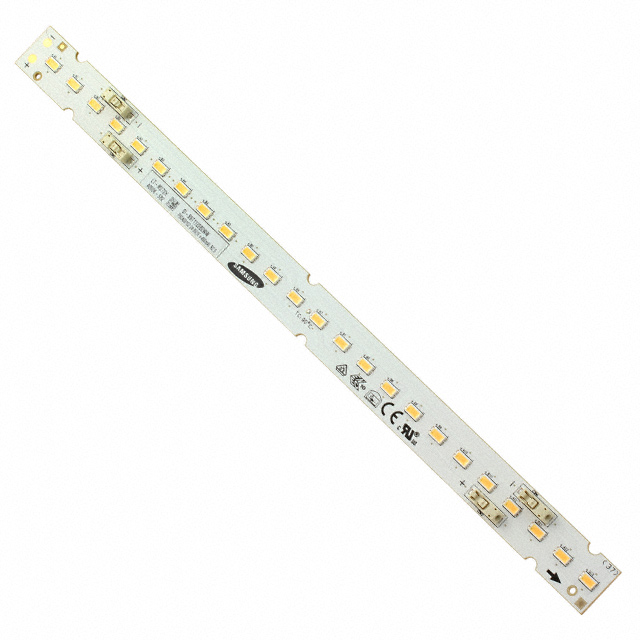

Samsung Semiconductor, Inc. presents the LT-M272H series LED Module, part number SI-B9V113280WW. This linear light strip module features a 3000K color temperature, specified with a 3-step MacAdam ellipse for consistent color. It offers a typical luminous flux of 1035 lumens at a test current of 450mA, achieving 92 lm/W. The module boasts a high Color Rendering Index (CRI) of 90, ensuring accurate color representation. Designed for a maximum forward current of 450mA, it has a typical forward voltage of 25V. The physical dimensions are 275.00mm in length and 18.00mm in width, with a height of 5.80mm. The viewing angle is 115°, and it utilizes a flat lens. This component is suitable for applications in general lighting and architectural lighting. The SI-B9V113280WW is supplied in tray packaging.
Additional Information
Series: LT-M272HRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 25V |
| Height | 5.80mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 450mA |
| Lumens/Watt @ Current - Test | 92 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 1035lm (Typ) |
