SI-B9U171560WW
LED MOD LT-M562H LNR STRP 3500KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

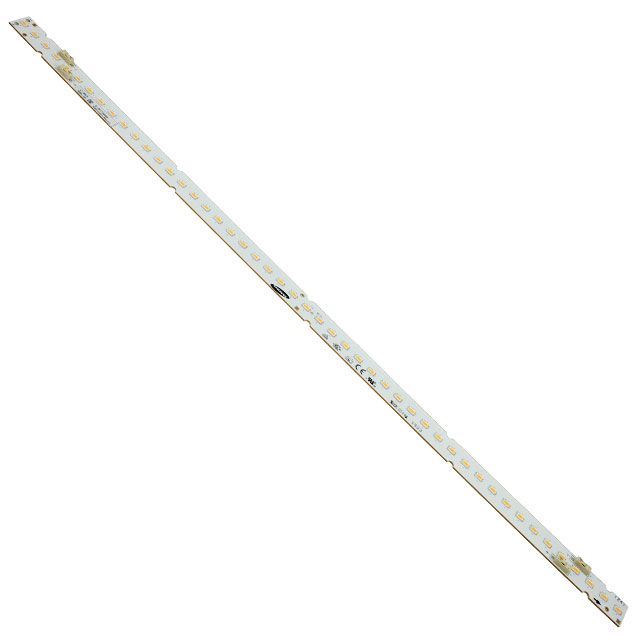

Samsung Semiconductor, Inc. LT-M562H series LED module. This linear light strip component offers a warm white light with a Correlated Color Temperature (CCT) of 3500K, specified to a 3-Step MacAdam Ellipse for tight color consistency. It features a high Color Rendering Index (CRI) of 90, suitable for applications requiring accurate color reproduction. The module is designed for operation up to a maximum current of 900mA, with a typical test current of 700mA yielding 108 lm/W. At 700mA and 50°C test temperature, it provides a typical luminous flux of 1820 lumens. The module has a forward voltage of 24V (typical) and a broad 115° viewing angle. Dimensions are 560.00mm in length by 18.00mm in width, with a height of 5.80mm. This component is supplied in a tray package. Applications include general illumination, architectural lighting, and retail display lighting.
Additional Information
Series: LT-M562HRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.80mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 108 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1820lm (Typ) |
