SI-B8W071300WW
LED MOD LT-A302A LNR STRP 2700KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

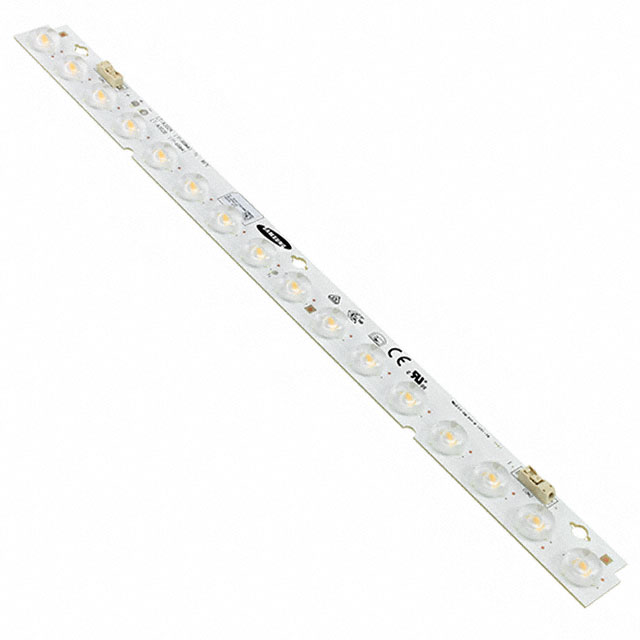

Samsung Semiconductor, Inc. presents the SI-B8W071300WW, an LED module from the LT-A302A series. This warm white linear light strip offers a correlated color temperature (CCT) of 2700K, specified within a 4-Step MacAdam Ellipse for consistent color. Engineered for demanding applications, it features a typical luminous flux of 880lm at a test current of 600mA, achieving 115 lm/W. The module operates with a forward voltage of 12.7V (typical) and has a maximum forward current of 600mA. Its compact dimensions are 295.00mm in length and 21.00mm in width, with a height of 6.00mm. The design incorporates a domed lens and a connector for ease of integration. This component is suitable for luminaires and general lighting applications where high-quality, linear illumination is required. The SI-B8W071300WW is supplied in tray packaging.
Additional Information
Series: LT-A302ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 295.00mm L x 21.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 12.7V |
| Height | 6.00mm |
| Current - Test | 600mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 115 lm/W |
| CCT (K) | 2700K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 45°C |
| Luminous Flux @ Current/Temperature | 880lm (Typ) |
