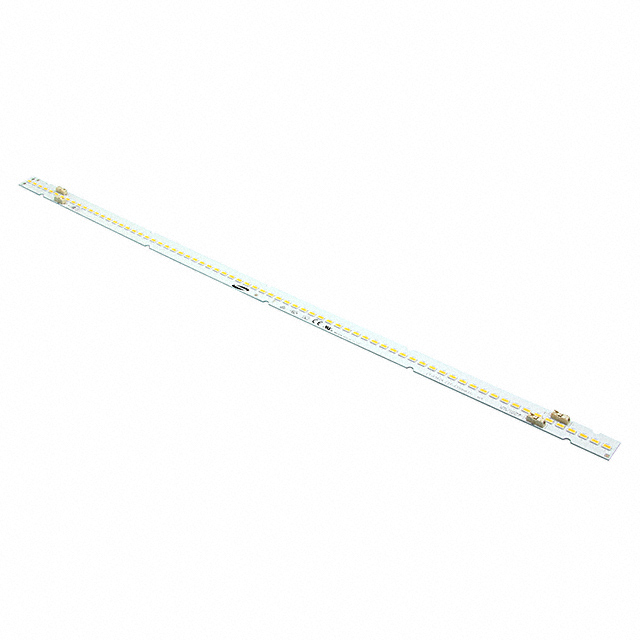

SI-B8V341560WW
LED MOD LT-F562A LNR STRP 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LT-F562A Series LED Module, Part Number SI-B8V341560WW. This linear light strip module features a 3000K correlated color temperature with a 4-step MacAdam ellipse binning for consistent color. It delivers a typical luminous flux of 4310 lumens at a test current of 1.35A, achieving 129 lm/W efficacy. The module operates at a typical forward voltage of 24.7V and has a CRI of 80. Designed with a flat lens and a viewing angle of 115°, this component includes an integrated connector. Its dimensions are 560.00mm in length and 18.00mm in width, with a height of 5.20mm. This LED module is suitable for general illumination and architectural lighting applications. Packaging is provided in trays.
Additional Information
Series: LT-F562ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.7V |
| Height | 5.20mm |
| Current - Test | 1.35A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 129 lm/W |
| CCT (K) | 3000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | 4310lm (Typ) |
Request a Quote
Clients Also Buy

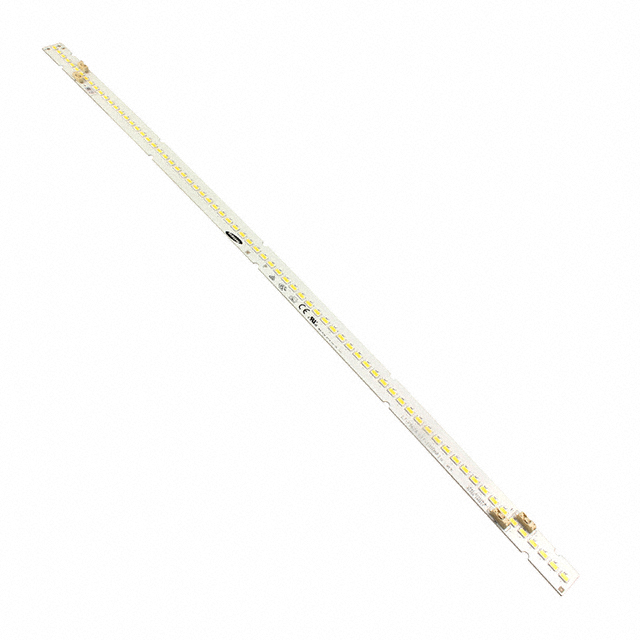

SI-B8R341560WW
LED MOD LT-F562A LNR STRP 5000K

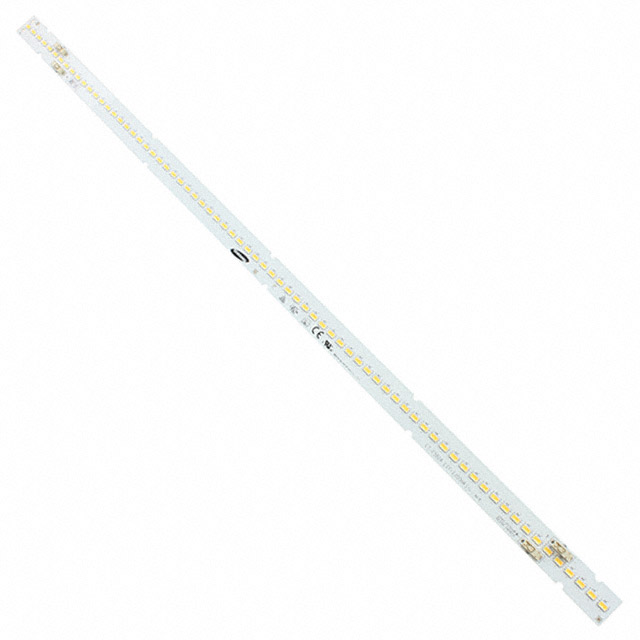

SI-B8T341560WW
LED MOD LT-F562A LNR STRP 4000K

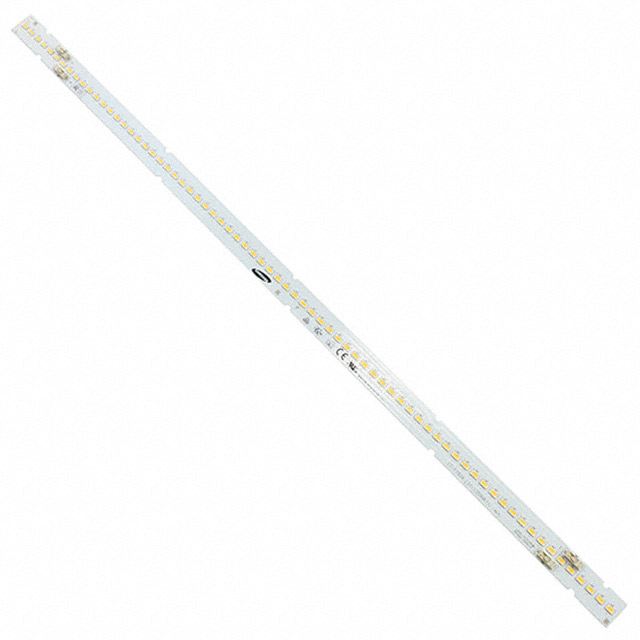

SI-B8U341560WW
