SI-B8V16256001
LED MOD LT-E564A LNR STRP 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

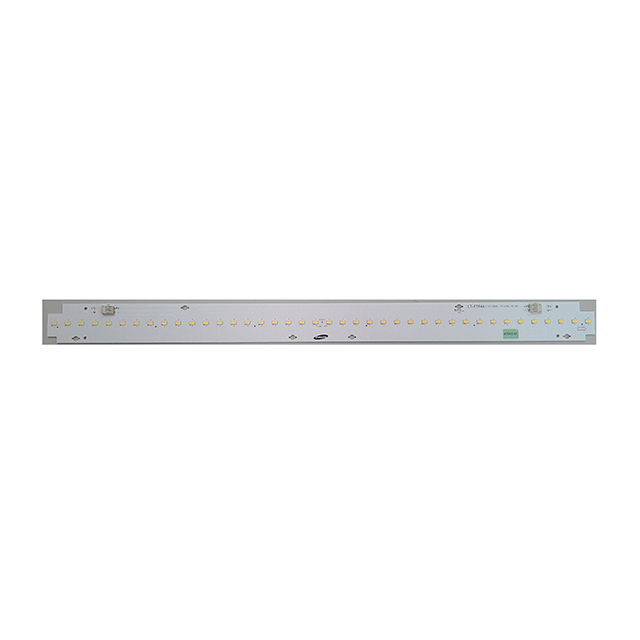

Samsung Semiconductor, Inc. LT-E564A series LED module. This warm white linear light strip, part number SI-B8V16256001, operates at a nominal 24.3V forward voltage and is designed for up to 750mA maximum current, with typical testing at 700mA. It delivers 2200 lumens (Typ) with a CRI of 80 and a luminous efficacy of 129 lm/W at the test current and 45°C. The module features a 3000K color temperature specified by a 3-Step MacAdam Ellipse and a broad 115° viewing angle. Its dimensions are 560.00mm in length by 40.00mm in width, with a height of 5.60mm. This component is suitable for general illumination and architectural lighting applications. The module includes a connector for ease of integration.
Additional Information
Series: LT-E564ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 40.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.3V |
| Height | 5.60mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 750mA |
| Lumens/Watt @ Current - Test | 129 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 45°C |
| Luminous Flux @ Current/Temperature | 2200lm (Typ) |
