SI-B8V161560WW
LED MOD LT-H564A LNR STRP 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

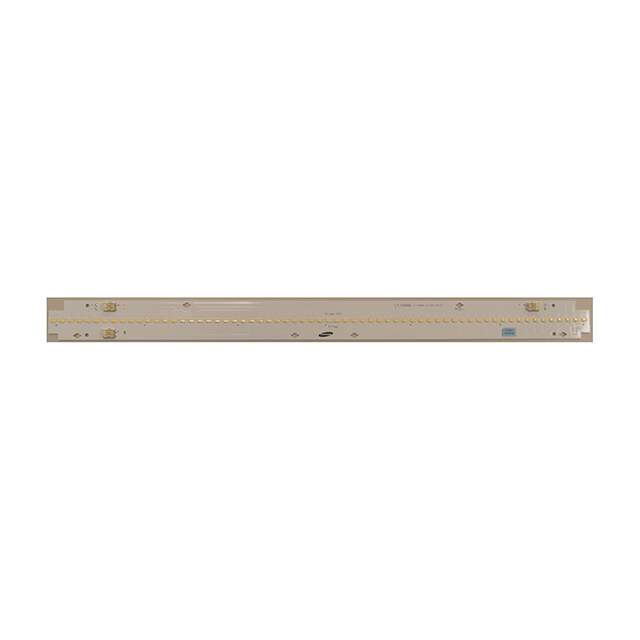

Samsung Semiconductor, Inc. presents the LT-H564A series LED module, part number SI-B8V161560WW. This linear light strip features a 3000K color temperature with a 3-step MacAdam ellipse for consistent color. Offering a typical luminous flux of 2140lm at 700mA test current, this module achieves 132 lm/W. Designed with a 5.60mm height and a 560mm x 40mm dimension, it incorporates a connector and a flat lens. The module operates at a forward voltage of 23.2V (typical) and a maximum current of 1.2A, with a test current of 700mA. The Color Rendering Index (CRI) is 80. This component is suitable for general lighting applications, including architectural and commercial lighting. The SI-B8V161560WW is supplied in trays.
Additional Information
Series: LT-H564ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 40.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 23.2V |
| Height | 5.60mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 132 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 45°C |
| Luminous Flux @ Current/Temperature | 2140lm (Typ) |
