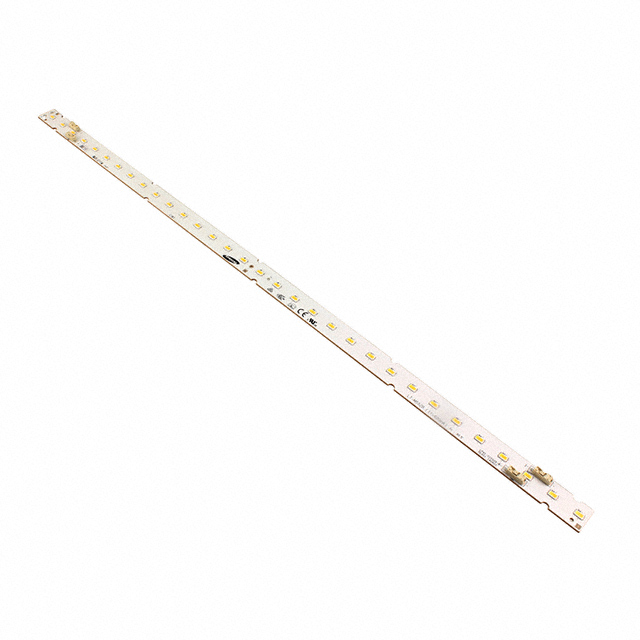

SI-B8V151550WW
LED MOD LT-M552B LNR STRP 3000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LT-M552B series LED module, part number SI-B8V151550WW, is a linear light strip designed for warm white illumination. This module operates at a nominal forward voltage of 24.7V and a test current of 600mA, achieving a luminous flux of 1950 lumens (typical) with a luminous efficacy of 132 lm/W at 50°C. The color temperature is specified as 3000K with a 3-step MacAdam ellipse tolerance, and a Color Rendering Index (CRI) of 80. Its dimensions are 550.00mm in length and 18.00mm in width, with a height of 5.80mm. The flat lens provides a wide 115° viewing angle. This component is supplied in a tray package and includes a connector for simplified integration. The LT-M552B series finds application in general lighting and architectural lighting solutions.
Additional Information
Series: LT-M552BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 550.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.7V |
| Height | 5.80mm |
| Current - Test | 600mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 132 lm/W |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1950lm (Typ) |
Request a Quote
Clients Also Buy

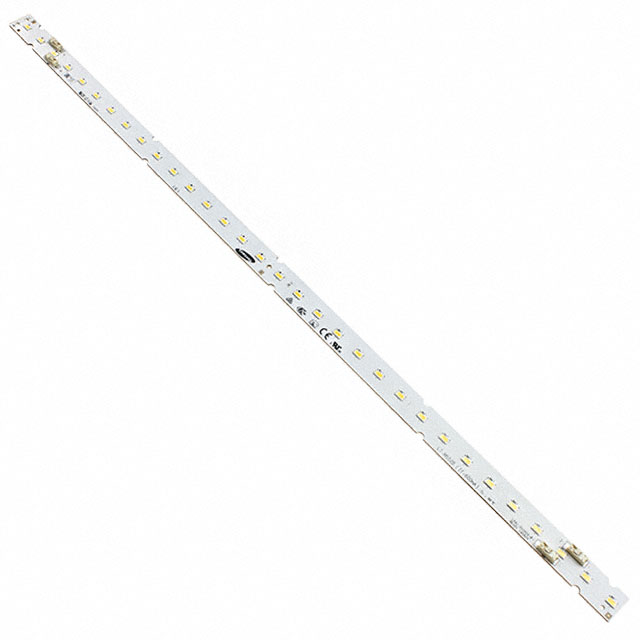

SI-B8R151550WW
LED MOD LT-M552B LNR STRP 5000K

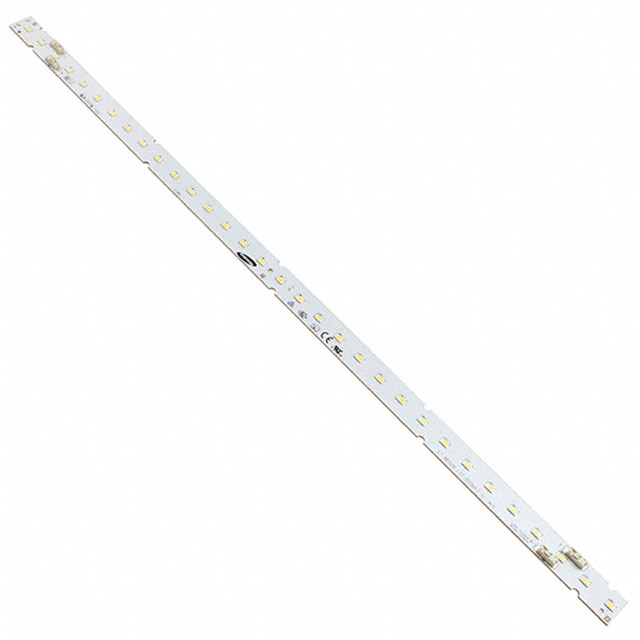

SI-B8T151550WW
LED MOD LT-M552B LNR STRP 4000K

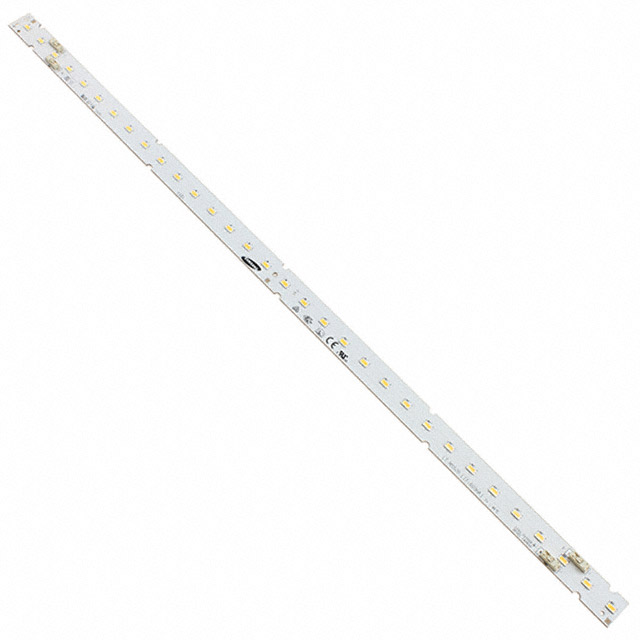

SI-B8U151550WW
