SI-B8U052280WW
LED MOD LTM282AG2 WARM WHT STRIPManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

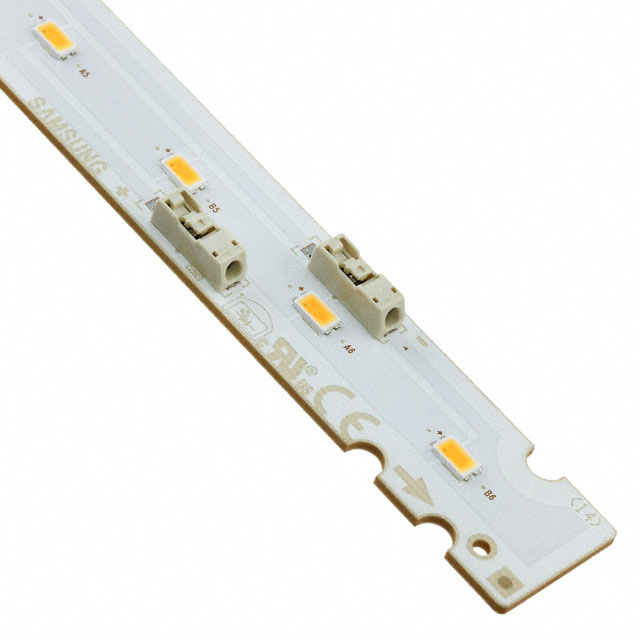

Samsung Semiconductor, Inc. LT-M282A_G2 series LED Module, part number SI-B8U052280WW. This linear light strip features a warm white color with a Correlated Color Temperature (CCT) of 3500K, specified within a 4-Step MacAdam Ellipse for consistent color. Designed for efficient illumination, it achieves 143 lm/W at a test current of 450mA, producing a typical luminous flux of 800lm at 50°C. The module operates at a forward voltage of 12.4V and supports a maximum current of 540mA. With a Color Rendering Index (CRI) of 80 and a 115° viewing angle, this flat lens module is suitable for general lighting applications. The dimensions are 275.00mm in length and 18.00mm in width, with a height of 4.40mm, and includes a connector. This component is supplied in a tray.
Additional Information
Series: LT-M282A_G2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 12.4V |
| Height | 4.40mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 540mA |
| Lumens/Watt @ Current - Test | 143 lm/W |
| CCT (K) | 3500K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 800lm (Typ) |
