SI-B8U041100WW
LED MOD LT-M092C LNR STRP 3500KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

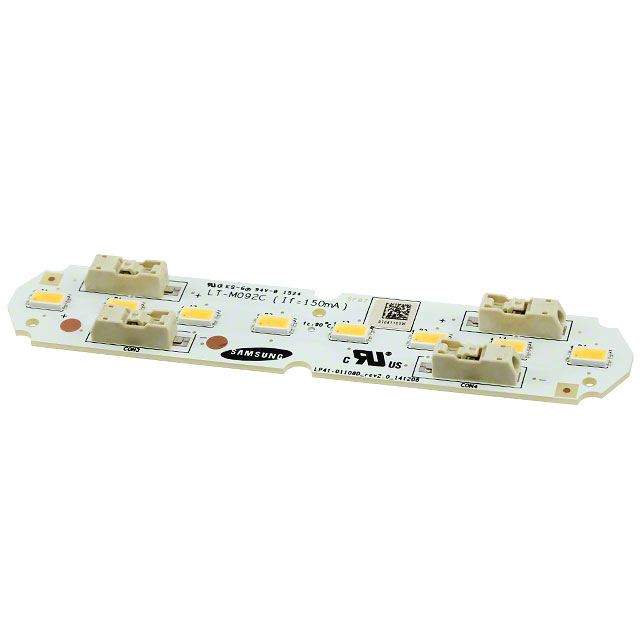

Samsung Semiconductor, Inc. LT-M092C series LED module, part number SI-B8U041100WW, is a linear light strip designed for general illumination applications. This 24V module provides a typical luminous flux of 356 lumens at 110mA test current, achieving 135 lm/W. It features a warm white color temperature of 3500K, specified with a 3-Step MacAdam ellipse for color consistency, and a CRI of 80. The module measures 91.00mm in length and 18.00mm in width, with a height of 5.20mm, and includes an integrated connector for ease of integration. Its flat lens offers a 115° viewing angle. This component is suitable for use in architectural lighting, retail displays, and commercial interiors.
Additional Information
Series: LT-M092CRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 91.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.20mm |
| Current - Test | 110mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 150mA |
| Lumens/Watt @ Current - Test | 135 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 356lm (Typ) |
