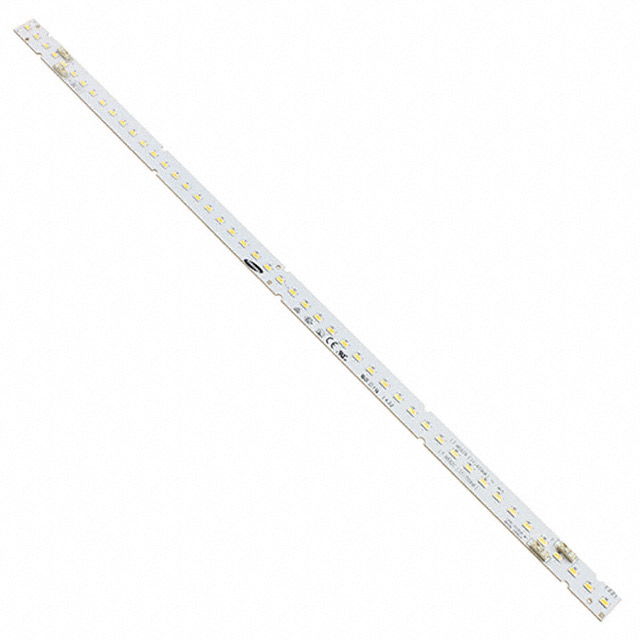

SI-B8T171560WW
LED MOD LT-M562C LNR STRP 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LT-M562C series LED module, part number SI-B8T171560WW. This linear light strip features a neutral white color with a correlated color temperature (CCT) of 4000K, specified within a 3-Step MacAdam Ellipse. The module offers a typical luminous flux of 2460lm with a Color Rendering Index (CRI) of 80. Optimized for efficiency, it achieves 146 lm/W at a test current of 700mA. The forward voltage (Vf) is typically 24V. Maximum current handling is 900mA, with testing performed at 700mA and 50°C. The module's dimensions are 560.00mm in length and 18.00mm in width, with a profile height of 5.80mm. It includes an integrated connector for ease of use. The viewing angle is 115°. Applications include general lighting and architectural lighting solutions. Supplied in Tray packaging.
Additional Information
Series: LT-M562CRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.80mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 146 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 2460lm (Typ) |
Request a Quote
Clients Also Buy
SI-B8V171560WW
LED MOD LT-M562C LNR STRP 3000K

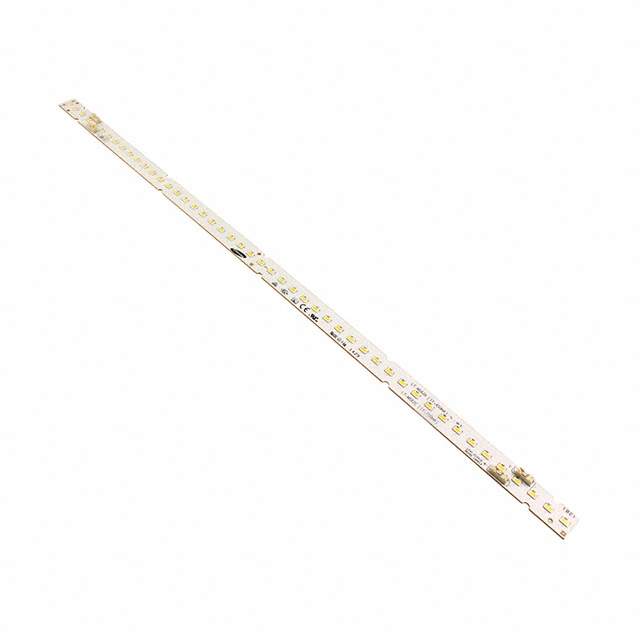

SI-B8U171560WW
