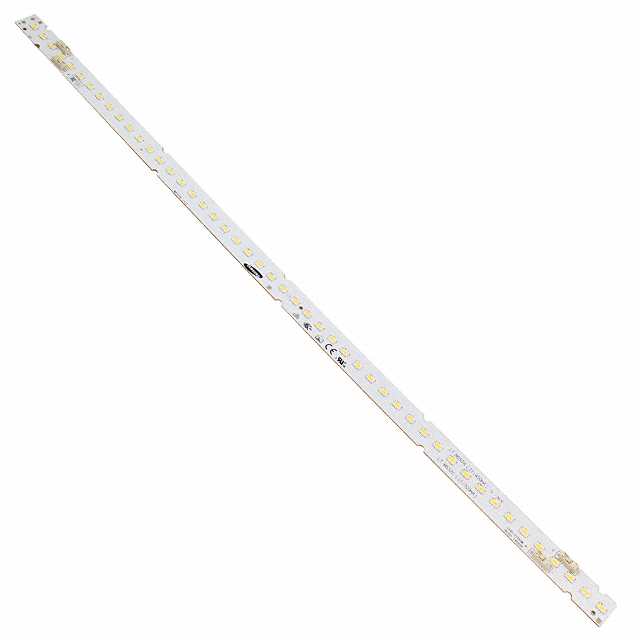

SI-B8T171550WW
LED MOD LT-M552C LNR STRP 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. presents the LT-M552C series LED module, part number SI-B8T171550WW. This neutral white linear light strip operates at a correlated color temperature of 4000K, specified within a 3-step MacAdam ellipse for color consistency. Optimized for efficiency, it achieves 146 lumens per watt at a test current of 700mA, delivering a typical luminous flux of 2460 lumens at 24V forward voltage. The module supports a maximum operating current of 900mA and features a CRI of 80. Its dimensions are 550.00mm in length and 18.00mm in width, with a height of 5.80mm. The flat lens design and 115° viewing angle make it suitable for various general lighting applications. This component is supplied in tray packaging and includes an integrated connector.
Additional Information
Series: LT-M552CRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 550.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.80mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 900mA |
| Lumens/Watt @ Current - Test | 146 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 2460lm (Typ) |
Request a Quote
Clients Also Buy

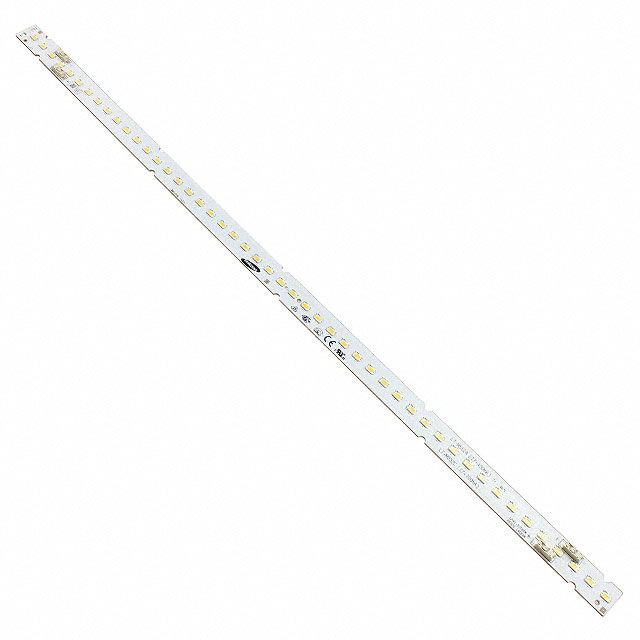

SI-B8V171550WW
LED MOD LT-M552C LNR STRP 3000K

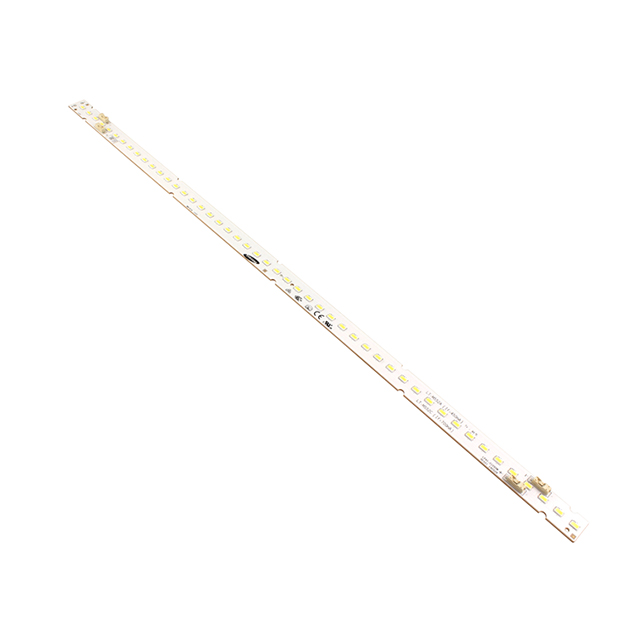

SI-B8R171550WW
LED MOD LT-M552C LNR STRP 5000K

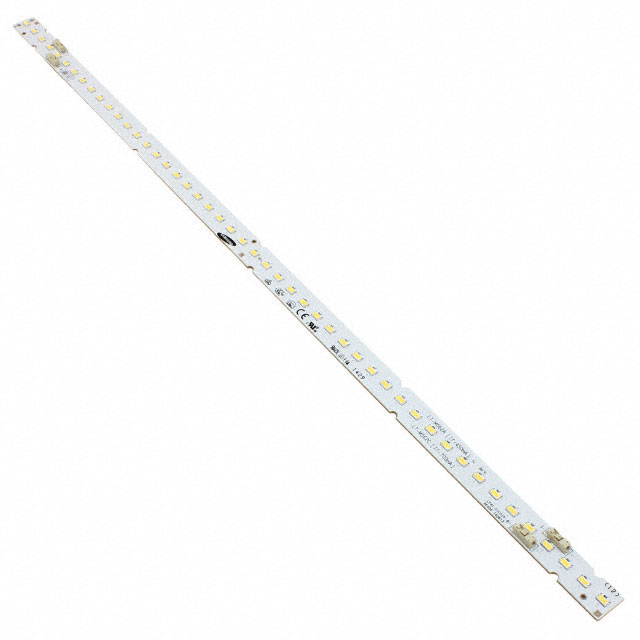

SI-B8U171550WW
