SI-B8T152560WW
LED MOD LTM562B WH LNR STR 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

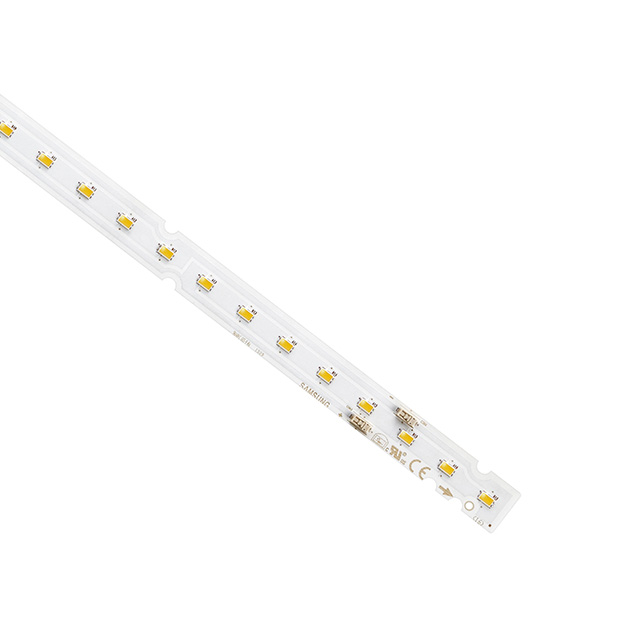

Samsung Semiconductor, Inc. presents the LT-M562B_G2 series LED module, part number SI-B8T152560WW. This linear light strip features a neutral white color with a correlated color temperature (CCT) of 4000K, specified within a 4-step MacAdam ellipse. Designed for efficiency, it achieves 148 lm/W at a test current of 600mA, delivering a typical luminous flux of 2200lm. The module operates with a maximum forward current of 720mA and a typical forward voltage of 24.8V. Its construction includes a connector for ease of integration and a flat lens type. With dimensions of 560.00mm in length and 18.00mm in width, and a height of 4.40mm, this module is suitable for general lighting applications, architectural lighting, and display backlighting. The component is supplied in trays.
Additional Information
Series: LT-M562B_G2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.8V |
| Height | 4.40mm |
| Current - Test | 600mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 720mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 2200lm (Typ) |
