SI-B8T114280WW
LED MOD LTM282CG2 NEU WHT STRIPManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

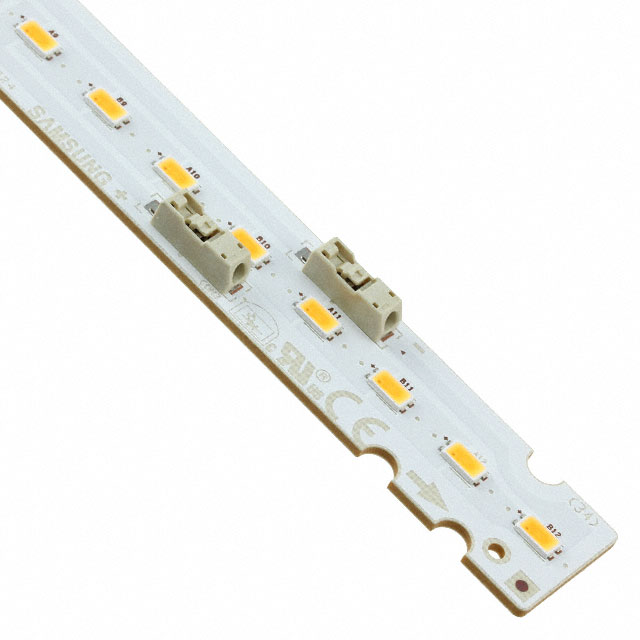

Samsung Semiconductor, Inc. presents the LT-M282C_G2 series LED Module, part number SI-B8T114280WW. This linear light strip configuration features a neutral white illumination with a correlated color temperature (CCT) of 4000K, specified within a 4-step MacAdam ellipse. The module offers a typical luminous flux of 1650 lumens at a test current of 450mA, achieving a luminous efficacy of 148 lumens per watt under these conditions. Designed for efficient operation, it supports a maximum current of 540mA and a typical forward voltage of 24.8V. The component boasts a color rendering index (CRI) of 80, and its flat lens design contributes to a wide 115° viewing angle. This LED module, measuring 275.00mm in length and 18.00mm in width with a height of 4.40mm, includes an integrated connector for simplified integration. Its robust performance characteristics make it suitable for various general lighting and architectural applications. Supplied in trays.
Additional Information
Series: LT-M282C_G2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.8V |
| Height | 4.40mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 540mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 4000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1650lm (Typ) |
