SI-B8T114250WW
LED MOD LAM-SQ30 WHT RECT 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

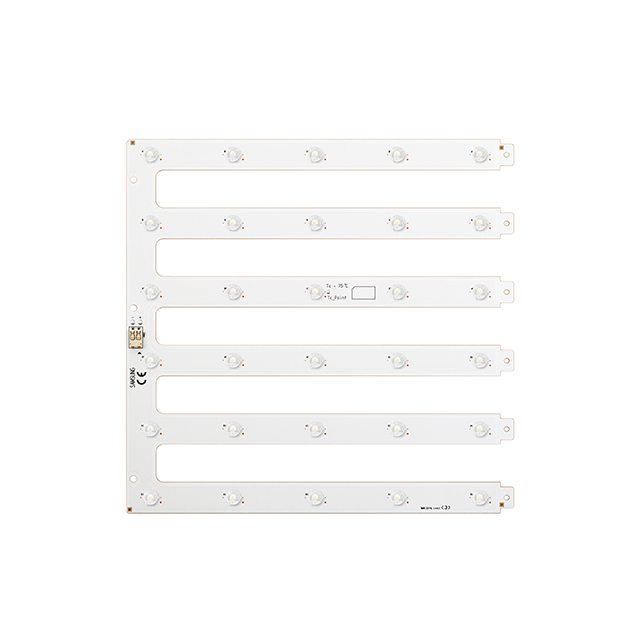

Samsung Semiconductor, Inc. LAM-SQ30 series LED module, part number SI-B8T114250WW. This neutral white LED module operates at 4000K with a CRI of 80. It features a rectangular configuration and a domed lens type. Rated for a maximum current of 540mA, with typical performance at 350mA yielding 143 lm/W. The luminous flux at the test current is 1515 lumens. The module has a forward voltage of 30.2V and a viewing angle of 145°. Dimensions are 259.00mm in length and 250.00mm in width, with a height of 6.60mm. This component is supplied in a tray package and includes a connector. Applications include general lighting, architectural lighting, and stage lighting.
Additional Information
Series: LAM-SQ30RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 259.00mm L x 250.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 30.2V |
| Height | 6.60mm |
| Current - Test | 350mA |
| Viewing Angle | 145° |
| Lens Type | Domed |
| Current - Max | 540mA |
| Lumens/Watt @ Current - Test | 143 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1515lm (1364lm ~ 1683lm) |
